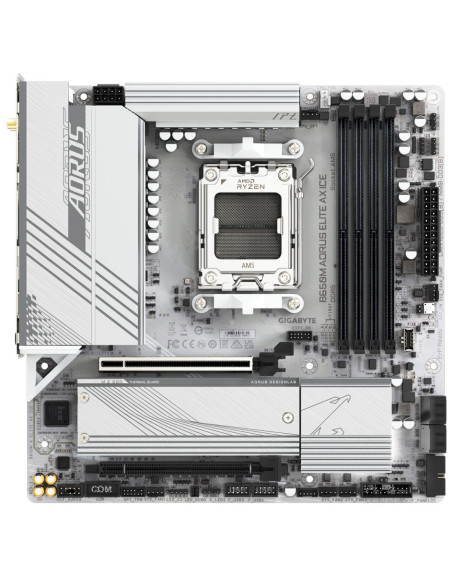

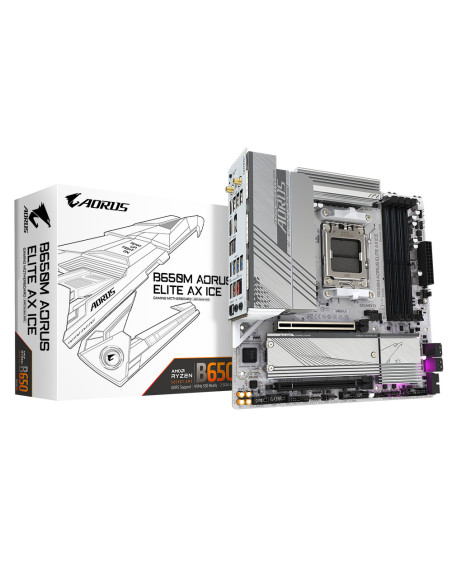

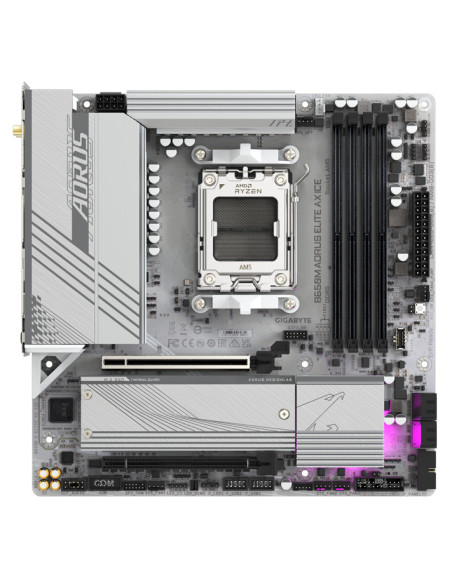

Blaci de baza GIGABYTE MB Gigabyte B650M AORUS ELITE AX ICE
GIGABYTEPlaca de Baza GIGABYTE B650M AORUS ELITE AX ICE AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6gb/s, mATX
Placa de Baza GIGABYTE B650M AORUS ELITE AX ICE AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6gb/s, mATX
- Conectivitate
- Da
Wi-Fi 6E (802.11ax) - Producator procesor
- AMD
- Chipset
- AMD B650
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 256
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Culoare
- White
- Versiune Bluetooth
- 5.3
- USB 3.2
- 0
5 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 4
- Depth
- 24.4 mm
- Width
- 244 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC897
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Battery weight
- 3 g
- WLAN controller model
- Realtek RTL8852CE
- Country of origin
- China
- Wi-FI
- Da
- Package height
- 68 mm
- Package width
- 270 mm
- Package depth
- 268 mm
- Package weight
- 1.89 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 25110
- 2nd M.2 highest PCI Express generation
- 4.0
- PCI Express x16 (Gen 4.x) slots
- 2
- Audio output channels
- 7.1 channels
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 4096 x 2304 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 4
- TPM connector
- Da
- Number of water pump connectors
- 2
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 5
- 12V power connector
- Da
- Supported memory clock speed (max)
- 8000 MHz
- ECC сompatibility
- Non-ECC
- Maximum internal memory per slot
- 64 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet
- LAN controller
- Realtek RTL8125
- Screws included
- Da
- Antenna included
- Da
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- DisplayPort version
- 1.4
- Digital audio optical out
- 1
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Da
- DVI-D ports quantity
- 0
- S/PDIF out port
- Da
- WiFi-AP antenna jack
- 2
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Socket procesor
- Socket AM5
- HDCP
- Da
- USB 3.2 Gen 2x2 connectors
- 1
- Supported memory clock speeds
- 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
- Numar sloturi memorie
- 4
- Serial port headers
- 1
- Discrete graphics support
- Da
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- AMD
- Niveluri RAID
- 0, 1, 10
- Interfete stocare
- M.2, SATA III
4719331859336
