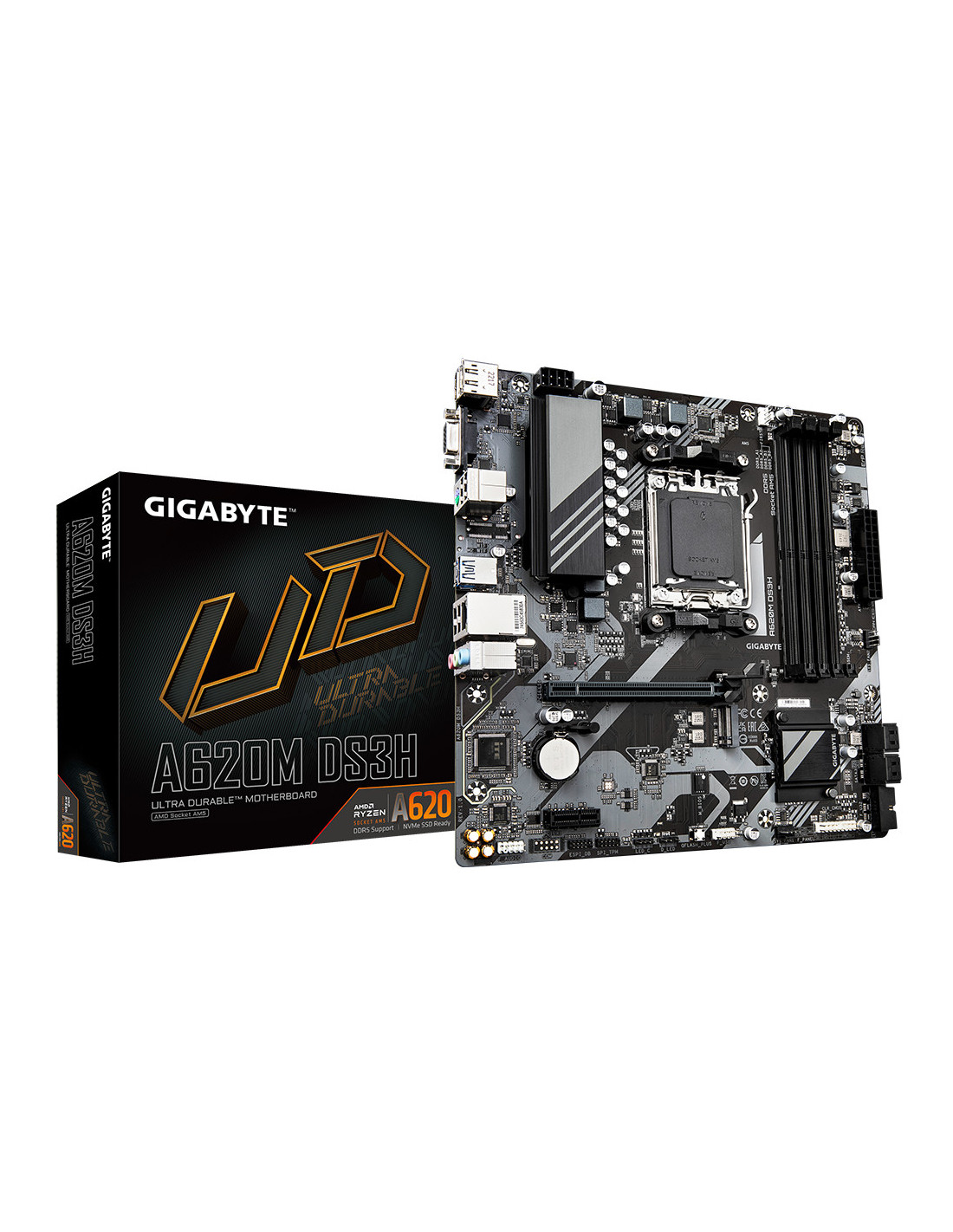

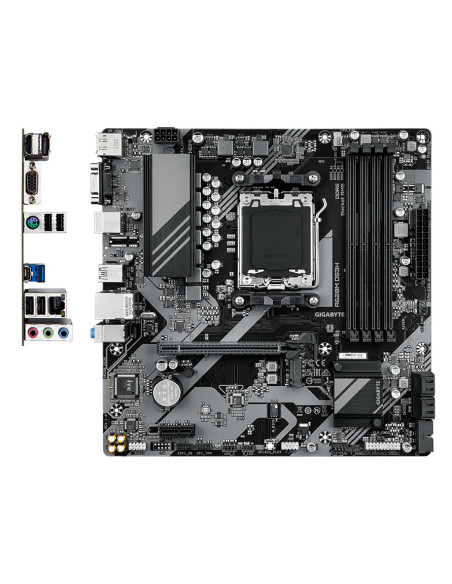

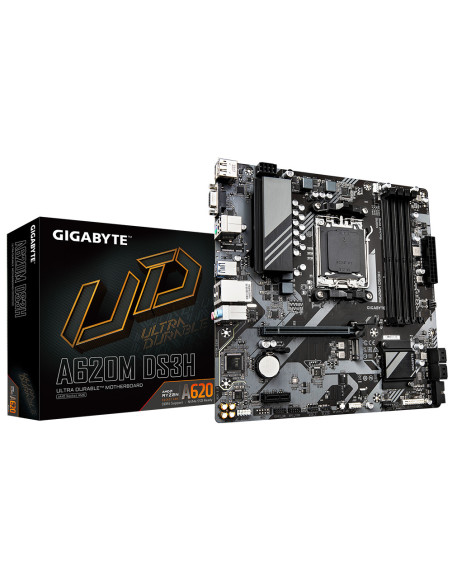

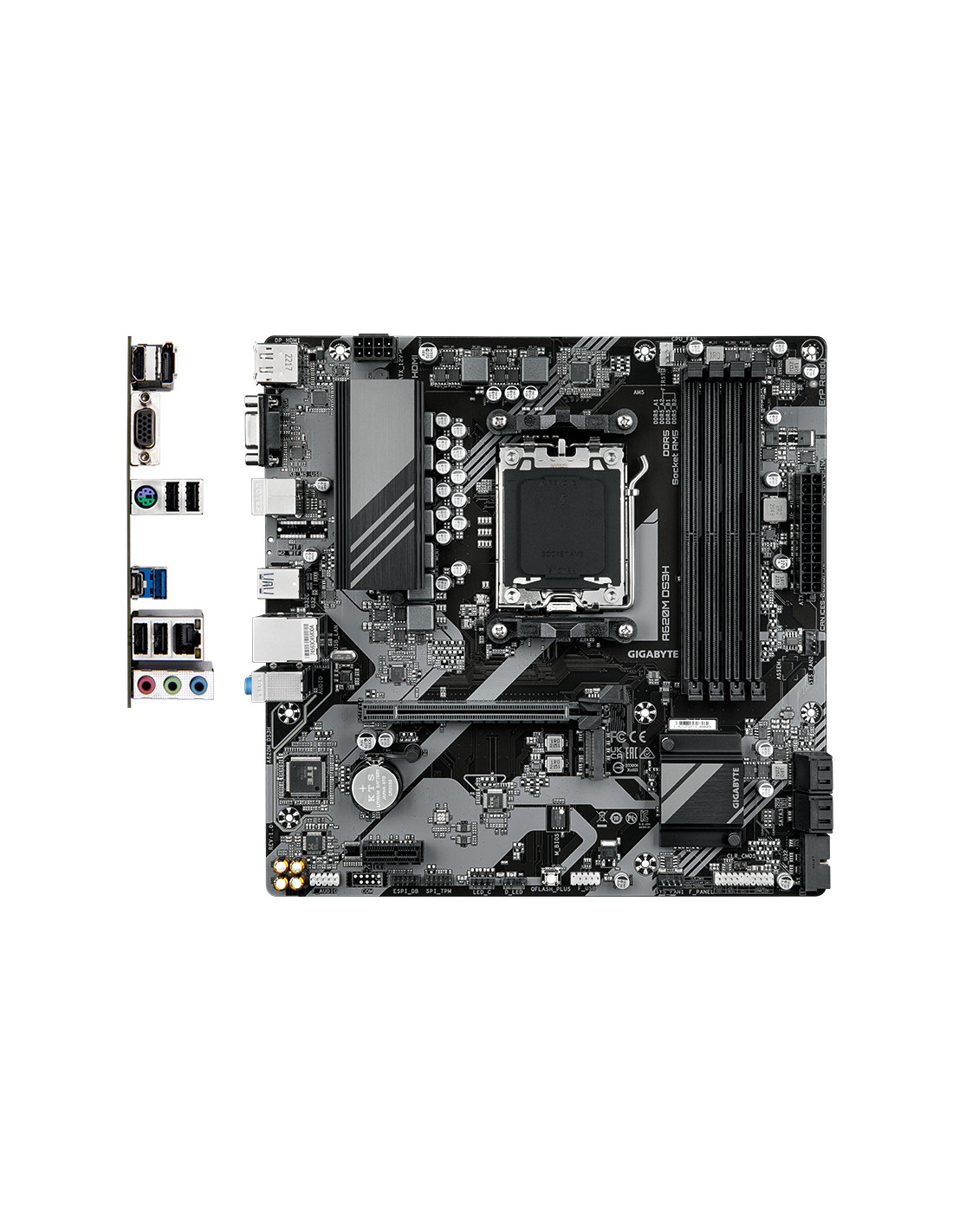

Blaci de baza GIGABYTE MB GIGABYTE A620M DS3H DDR5
GIGABYTEMB GIGABYTE A620M DS3H (rev. 1.0) AM5 4xDDR5 1x Display Port, 1x HDMI, 1x D-Sub, Micro ATX https://www.gigabyte.com/Motherboard/A620M-DS3H-rev-10/sp#sp
MB GIGABYTE A620M DS3H (rev. 1.0) AM5 4xDDR5 1x Display Port, 1x HDMI, 1x D-Sub, Micro ATX https://www.gigabyte.com/Motherboard/A620M-DS3H-rev-10/sp#sp
- Conectivitate
- Da
- Producator procesor
- AMD
- Chipset
- AMD A620
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 192
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Culoare
- Brown
- USB 3.2
- 0
1 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 4
- Depth
- 24.4 mm
- Width
- 244 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Battery weight
- 3 g
- Country of origin
- China
- Wi-FI
- Nu
- Package height
- 54 mm
- Package width
- 265 mm
- Package depth
- 265 mm
- Package weight
- 1.07 kg
- USB connector type
- USB Type-A, USB Type-C
- Headphone outputs
- 3
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- Audio output channels
- 7.1 channels
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- TPM connector
- Da
- RGB LED pin header
- Da
- 12V power connector
- Da
- Supported memory clock speed (max)
- 7600 MHz
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- Gigabit Ethernet
- Compatible processor series
- AMD Ryzen 7000 Series
- Supported processor sockets
- Socket AM5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- DVI-D ports quantity
- 0
- RAID support
- Da
- Number of HDDs supported
- 1
- Number of storage drives supported
- 4
- Supported storage drive types
- HDD & SSD
- MB-Socket
- AM5
- MB-Format
- micro-ATX
- PCI-Ex1
- 1
- PCI-Ex16
- 1
- RAM-Slots
- 4
- USB3
- 4-8
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Cables included
- SATA
- Maximum internal memory supported by processor
- 192 GB
- Socket procesor
- Socket AM5
- HDCP
- Da
- Microphone in
- Da
- Supported memory clock speeds
- 4800,5200,5600,6000,6200,6400,6800,7000,7200,7600 MHz
- Numar sloturi memorie
- 4
- PS/2 ports quantity
- 1
- Total number of SATA connectors
- 4
- PCI Express x16 slots
- 1
- PCI Express x1 slots
- 1
- Supported memory module capacities
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- Numar sloturi M.2
- 1
- Format placa de baza
- micro ATX
- Familie chipset
- AMD
- Niveluri RAID
- 0, 1, 10
- Interfete stocare
- M.2, SATA III
4719331855567
