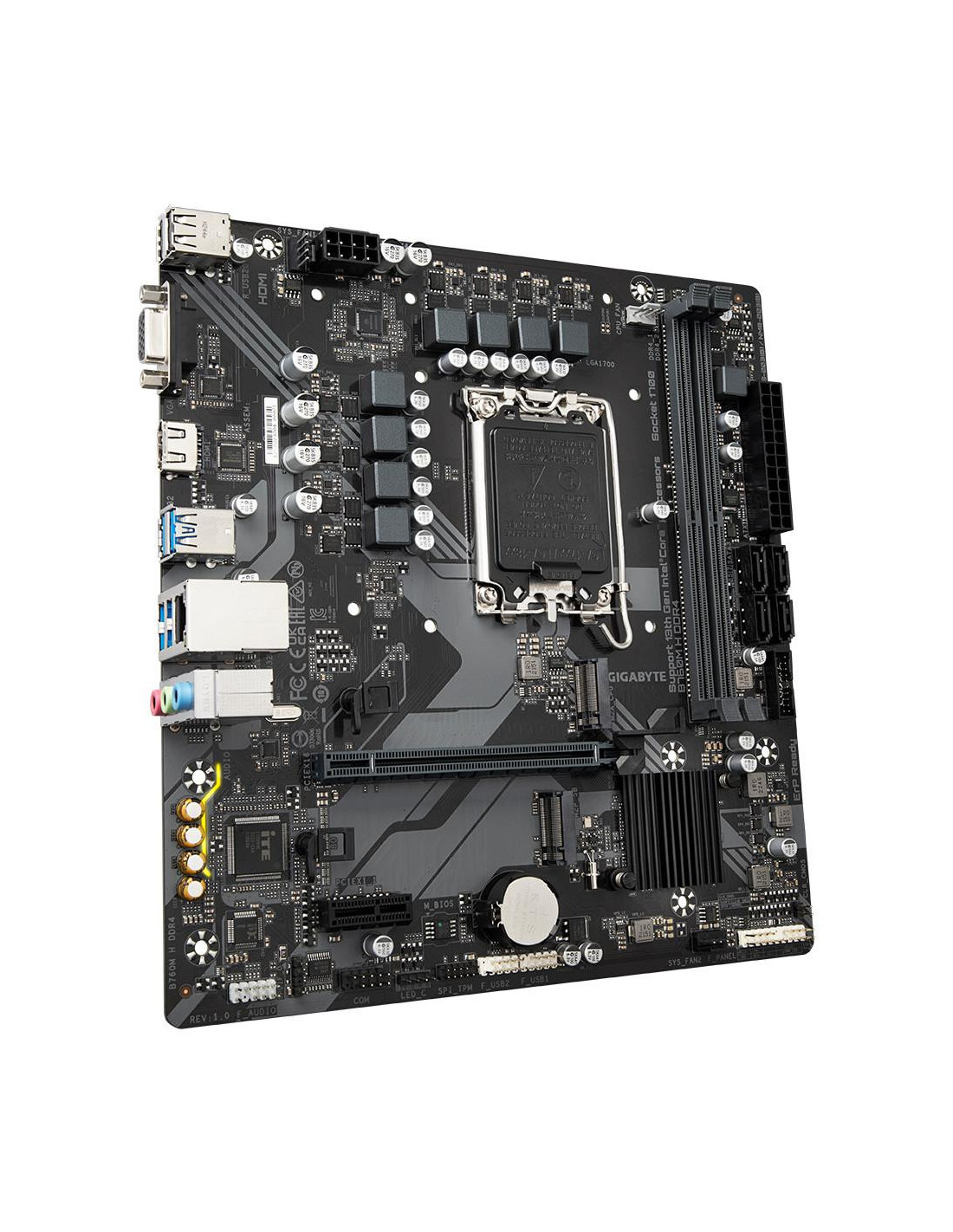

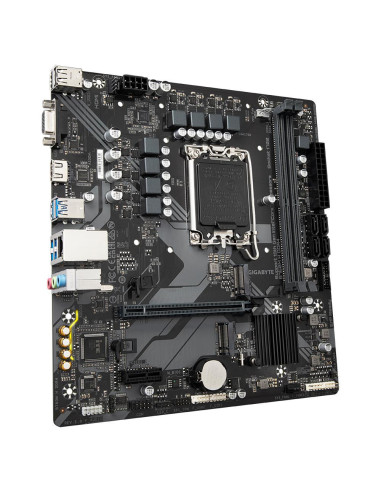

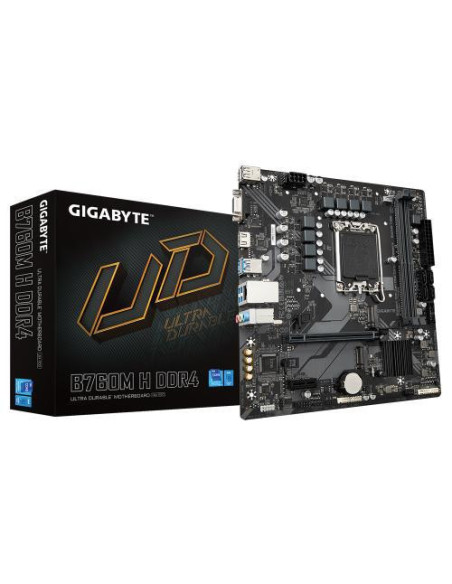

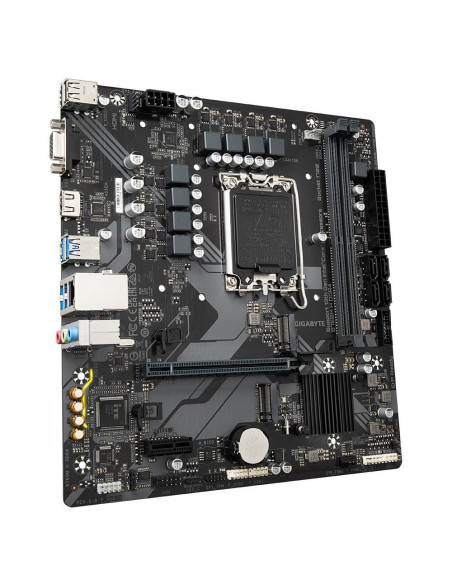

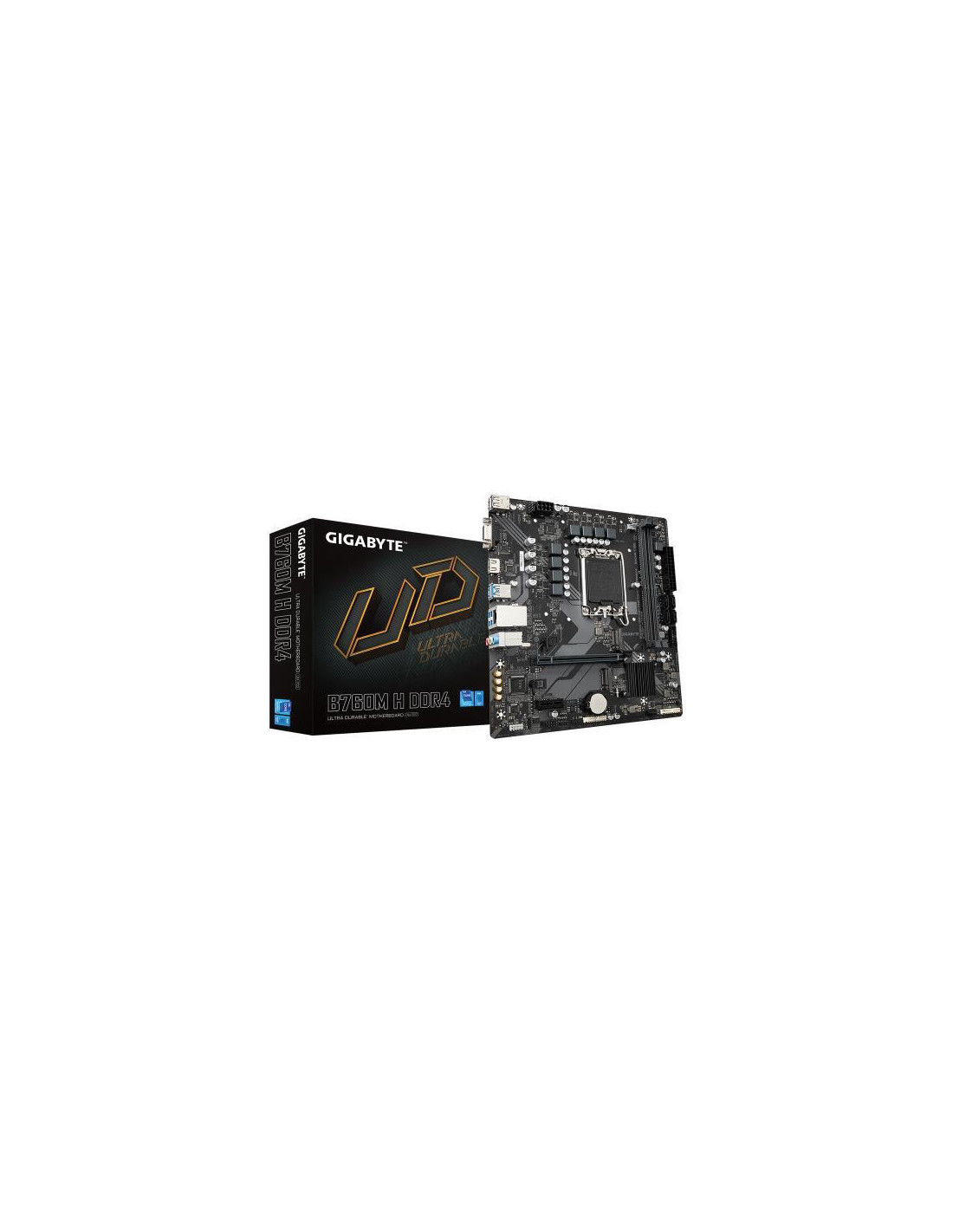

Blaci de baza GIGABYTE MB GB B760M H DDR4 LGA1700 DDR4
GIGABYTEPlaca de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 1Gbps LAN, mATX
Placa de baza Gigabyte B760M H LGA1700, 2x DDR4, 1x D-Sub, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gbps, 1Gbps LAN, mATX
- Conectivitate
- Da
- Producator procesor
- Intel
- Chipset
- Intel B760 Express
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 64
- Tip memorie RAM
- DDR4
DDR4-SDRAM - Culoare
- Brown
- USB 3.2
- 0
4 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 2
- Depth
- 215 mm
- Width
- 230 mm
- Height
- 35 mm
- HDMI version
- 1.4
- Audio Chip
- Realtek ALC897
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Battery weight
- 3 g
- Country of origin
- China
- Wi-FI
- Nu
- Package height
- 54 mm
- Package width
- 265 mm
- Package depth
- 265 mm
- Package weight
- 825 g
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 128 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Component for
- PC
- Windows operating systems supported
- Windows 10, Windows 11
- Power source type
- ATX
- Parallel processing technology support
- Not supported
- DirectX version
- 12.1
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- TPM connector
- Da
- RGB LED pin header
- Da
- Products per shipping (inner) case
- 1 pc(s)
- Supported memory clock speed (max)
- 3200 MHz
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Ethernet interface type
- Gigabit Ethernet
- Batteries included
- Da
- Compatible processor series
- Intel® Celeron®, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- DVI-D ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Warranty period
- 3 year(s)
- MB-Socket
- 1700
- MB-Format
- micro-ATX
- PCI-Ex1
- 1
- PCI-Ex16
- 1
- RAM-Slots
- 2
- USB3
- 4-8
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Maximum internal memory supported by processor
- 64 GB
- Socket procesor
- LGA 1700
- Supported memory clock speeds
- 2133,2400,2666,2933,3000,3200 MHz
- Numar sloturi memorie
- 2
- Serial port headers
- 1
- Total number of SATA connectors
- 4
- Maximum number of SMP processors
- 1
- Supported memory module capacities
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- Intel
- Niveluri RAID
- 0, 1, 5, 10
- Interfete stocare
- M.2, SATA III
4719331854645
