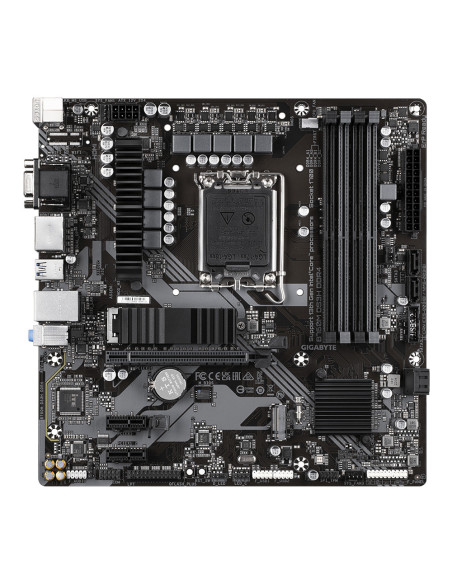

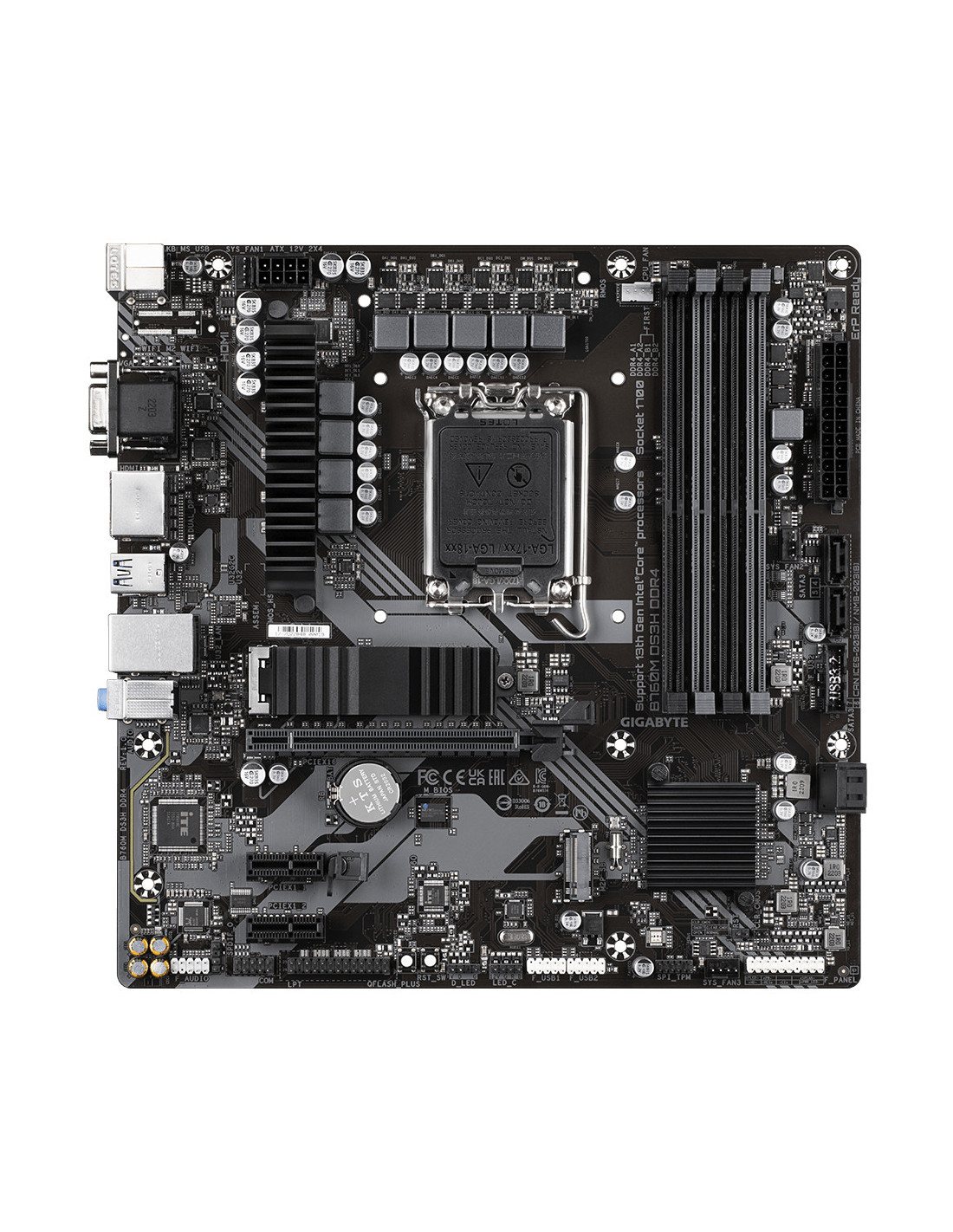

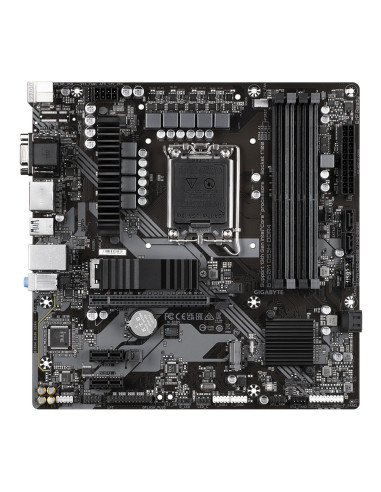

Blaci de baza GIGABYTE MB GB B760M DS3H DDR4 LGA1700 DDR4
GIGABYTEPlaca de baza Gigabyte B760M DS3H DDR4 LGA1700, 4x sloturi ram, max.128GB, frecventa maxima suportata 5333MHz, 1x D-Sub, 2x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 2.5Gbps, microATX
Placa de baza Gigabyte B760M DS3H DDR4 LGA1700, 4x sloturi ram, max.128GB, frecventa maxima suportata 5333MHz, 1x D-Sub, 2x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 2.5Gbps, microATX
- Conectivitate
- Da
- Producator procesor
- Intel
- Chipset
- Intel B760 Express
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 128
- Tip memorie RAM
- DDR4
DDR4-SDRAM - Culoare
- Brown
- USB 3.2
- 0
3 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 2
- Depth
- 24.4 mm
- Width
- 244 mm
- Height
- 35 mm
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Bundled software
- Norton Internet Security
- Battery weight
- 3 g
- Country of origin
- China
- Wi-FI
- Nu
- Package height
- 54 mm
- Package width
- 265 mm
- Package depth
- 265 mm
- Package weight
- 990 g
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 128 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 10, Windows 11
- Power source type
- ATX
- Maximum resolution
- 4096 x 2304 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of chassis fan connectors
- 3
- TPM connector
- Da
- RGB LED pin header
- Da
- Supported memory clock speed (max)
- 5333 MHz
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Supported processor sockets
- LGA 1700
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPorts quantity
- 2
- VGA (D-Sub) ports quantity
- 1
- Line-in
- Da
- DVI-D ports quantity
- 0
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Maximum internal memory supported by processor
- 128 GB
- Socket procesor
- LGA 1700
- Number of displays supported
- 4
- HDCP
- Da
- Numar sloturi memorie
- 4
- Serial port headers
- 1
- PS/2 ports quantity
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
- S/PDIF out connector
- Da
- Total number of SATA connectors
- 4
- Parallel connector
- Da
- Supported memory module capacities
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- Intel
- Niveluri RAID
- 0, 1, 5, 10
- Interfete stocare
- M.2, SATA III
