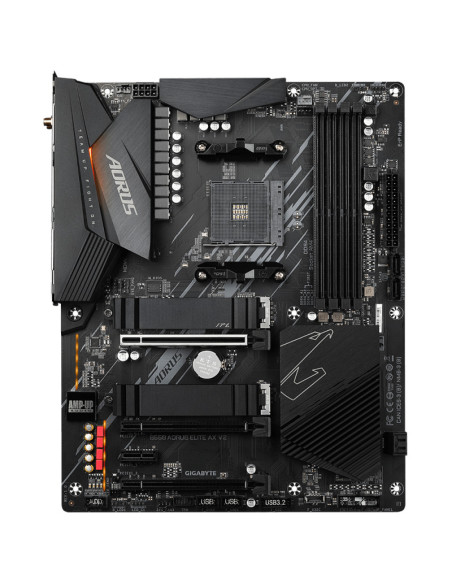

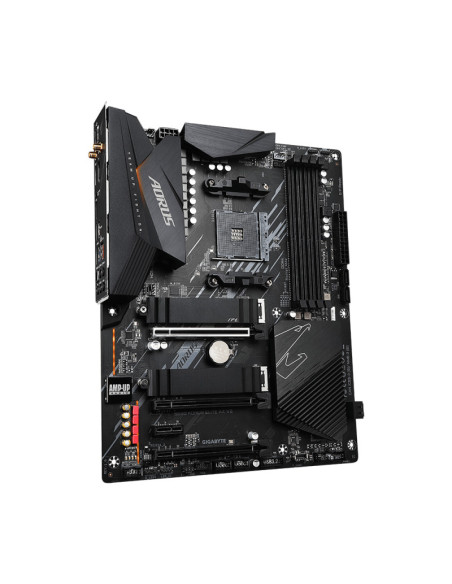

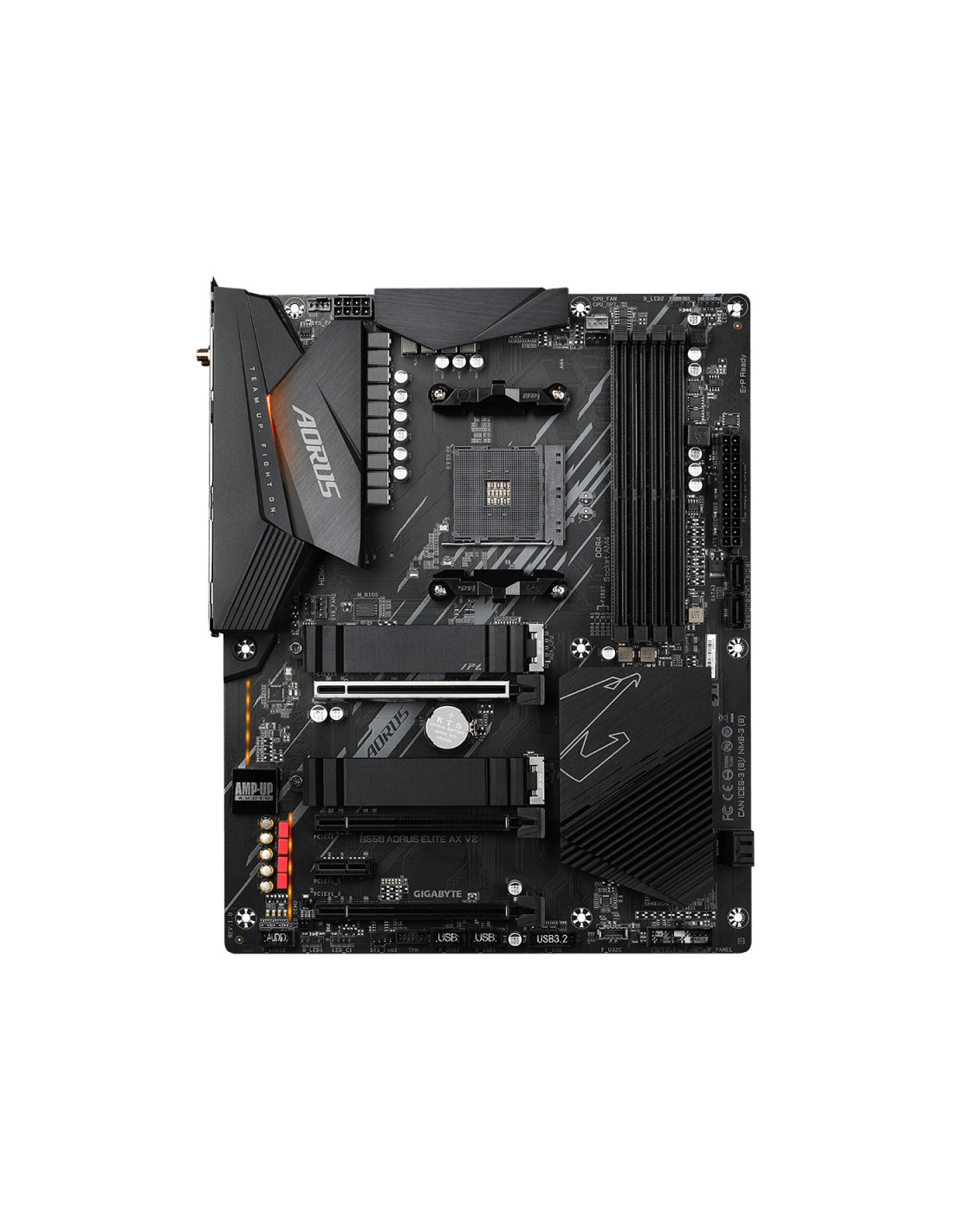

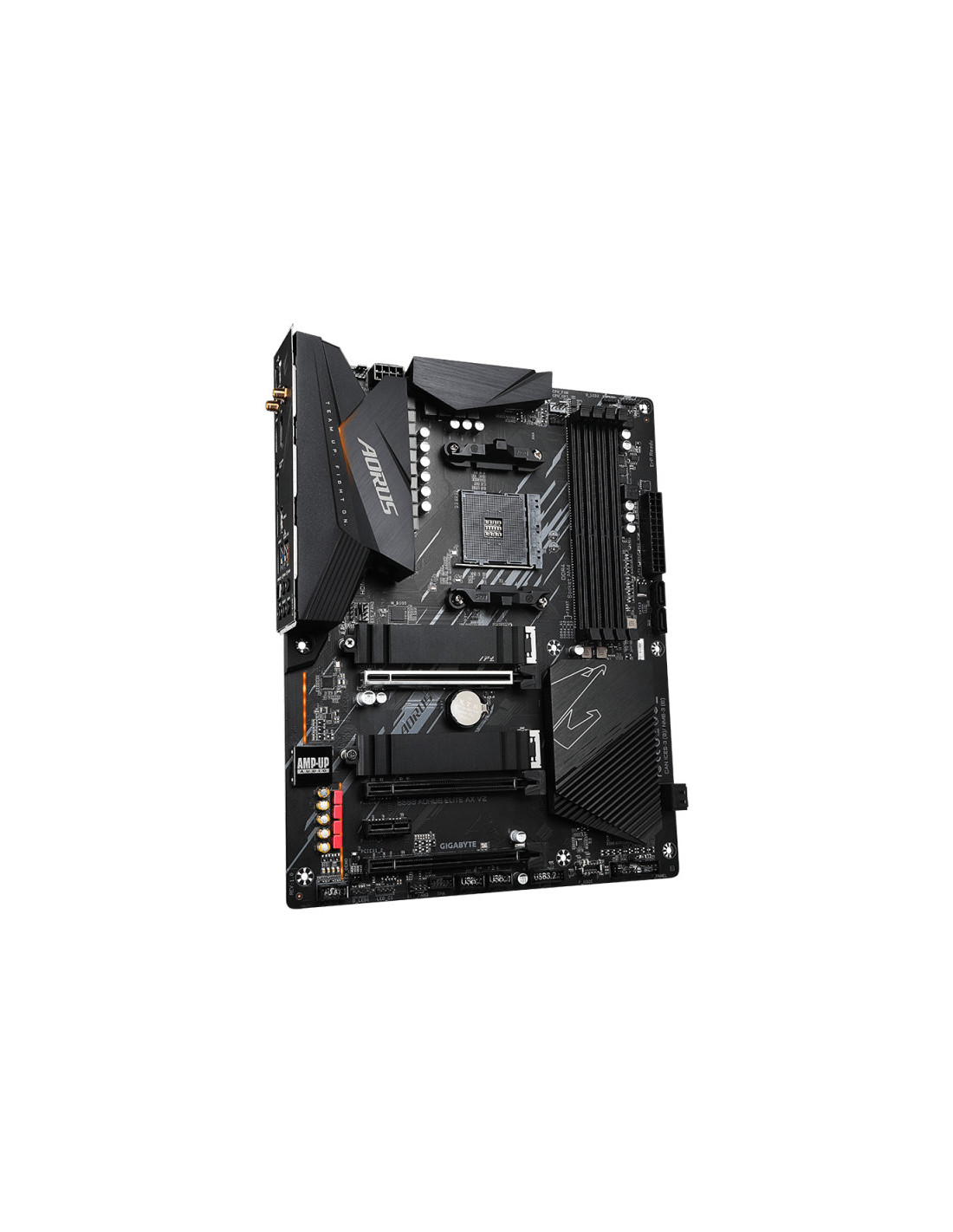

Blaci de baza GIGABYTE MB Gigabyte B550 AORUS ELITE AX V2 AM4
GIGABYTEPlaca de baza Gigabyte B550 AORUS ELITE AX V2 AM4 / B550 AORUS ELITE AX V2 AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN
Placa de baza Gigabyte B550 AORUS ELITE AX V2 AM4 / B550 AORUS ELITE AX V2 AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10/sp#sp
- Conectivitate
- Da
Wi-Fi 6E (802.11ax) - Producator procesor
- AMD
- Greutate
- 1.12 kg
- Chipset
- AMD B550
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 128
- Tip memorie RAM
- DDR4
DDR4-SDRAM - Tip stocare
- NVME
- Versiune Bluetooth
- 5.2
- USB 3.2
- 0
3 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 2
- Depth
- 24.4 mm
- Width
- 30.5 mm
- Height
- 35 mm
- Audio Chip
- Realtek ALC1200
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Battery weight
- 3 g
- WLAN controller model
- Intel Wi-Fi 6E AX210
- Country of origin
- China
- Wi-FI
- Da
- Package height
- 80 mm
- Package width
- 335 mm
- Package depth
- 270 mm
- Package weight
- 1.89 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Component for
- PC
- PC health monitoring
- CPU, Fan, Temperature, Voltage
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 5120 x 2880 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of chassis fan connectors
- 3
- TPM connector
- Da
- RGB LED pin header
- Da
- 12V power connector
- Da
- Supported memory clock speed (max)
- 4733 MHz
- ECC сompatibility
- ECC & Non-ECC
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Compatible processor series
- AMD Ryzen 3000 Series
- Supported processor sockets
- Socket AM4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 0
- DVI-D ports quantity
- 0
- S/PDIF out port
- Da
- WiFi-AP antenna jack
- 2
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- PCI
- 0
- Serial-or-Paralel
- No/No
- Maximum internal memory supported by processor
- 128 GB
- Socket procesor
- Socket AM4
- Microphone in
- Da
- Supported memory clock speeds
- 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
- Numar sloturi memorie
- 4
- PS/2 ports quantity
- 0
- PCI Express x1 (Gen 3.x) slots
- 1
- Number of SATA II connectors
- 0
- Number of SATA connectors
- 4
- Total number of SATA connectors
- 4
- PCI Express x16 slots
- 2
- Number of Parallel ATA connectors
- 0
- Maximum number of SMP processors
- 1
- eSATA ports quantity
- 0
- Firewire (IEEE 1394) ports
- 0
- Supported processor sockets (cooler)
- Socket AM4
- Supported memory module capacities
- 8GB, 16GB, 32GB
- CPU încorporat
- Nu
- Numar sloturi M.2
- 2
- Format placa de baza
- ATX
- Familie chipset
- AMD
- Niveluri RAID
- 0, 1, 10
- Interfete stocare
- M.2, SATA III
4719331809904
