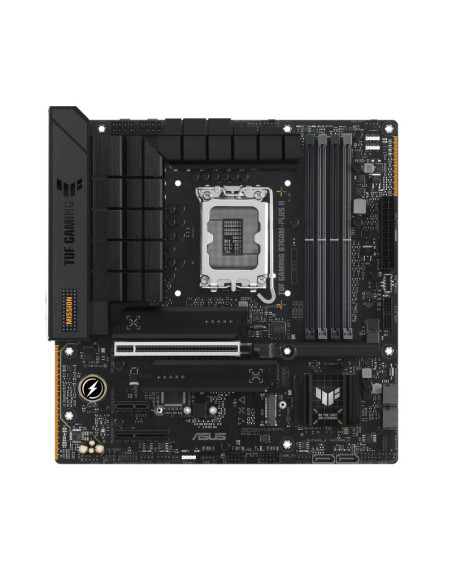

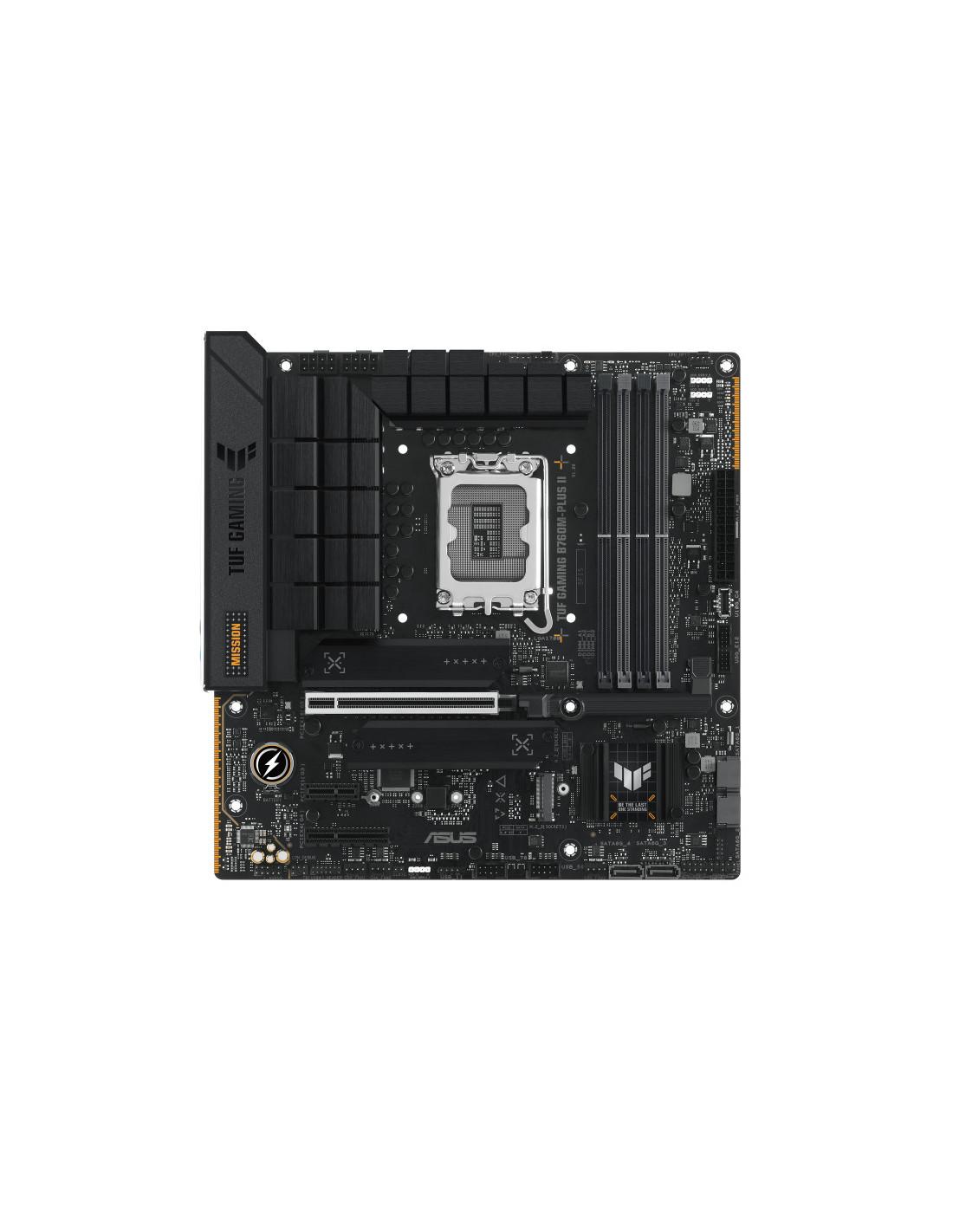

Blaci de baza ASUS MB ASUS TUF GAMING B760M-PLUS II
AsusPlaca de baza Asus TUF GAMING B760M-PLUS II
Placa de baza Asus TUF GAMING B760M-PLUS II
- Chipset
- Intel B760
- Conectivitate
- Da
- Producator procesor
- Intel
- Greutate
- 982 g
- Brand
- ASUS
- Memorie RAM (GB)
- 192
- Tip memorie RAM
- DDR5-SDRAM
- USB 3.2
- 0
2 - HDMI
- 1
- USB 2.0 ports quantity
- 4
- Depth
- 24.4 mm
- Width
- 244 mm
- Height
- 50 mm
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Wi-FI
- Nu
- Package height
- 71 mm
- Package width
- 280 mm
- Package depth
- 265 mm
- Package weight
- 1.65 kg
- Headphone outputs
- 1
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- PCI Express x16 (Gen 5.x) slots
- 1
- Audio output channels
- 7.1 channels
- Component for
- PC
- Windows operating systems supported
- Windows 10 x64, Windows 11
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of chassis fan connectors
- 3
- Thunderbolt headers
- 1
- 12V power connector
- Da
- Supported memory clock speed (max)
- 7800 MHz
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Screws included
- Da
- Supported processor sockets
- LGA 1700
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 0
- DVI-D ports quantity
- 0
- S/PDIF out port
- Da
- Ethernet LAN (RJ-45) ports
- 1
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Cables included
- SATA
- Socket procesor
- LGA 1700
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Microphone in
- Da
- Supported memory clock speeds
- 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
- Numar sloturi memorie
- 4
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x4 (Gen 4.x) slots
- 1
- Numar sloturi M.2
- 3
- Format placa de baza
- micro ATX
- Familie chipset
- Intel
- Niveluri RAID
- 0, 1, 5, 10
- Interfete stocare
- M.2, SATA III
4711387469798
