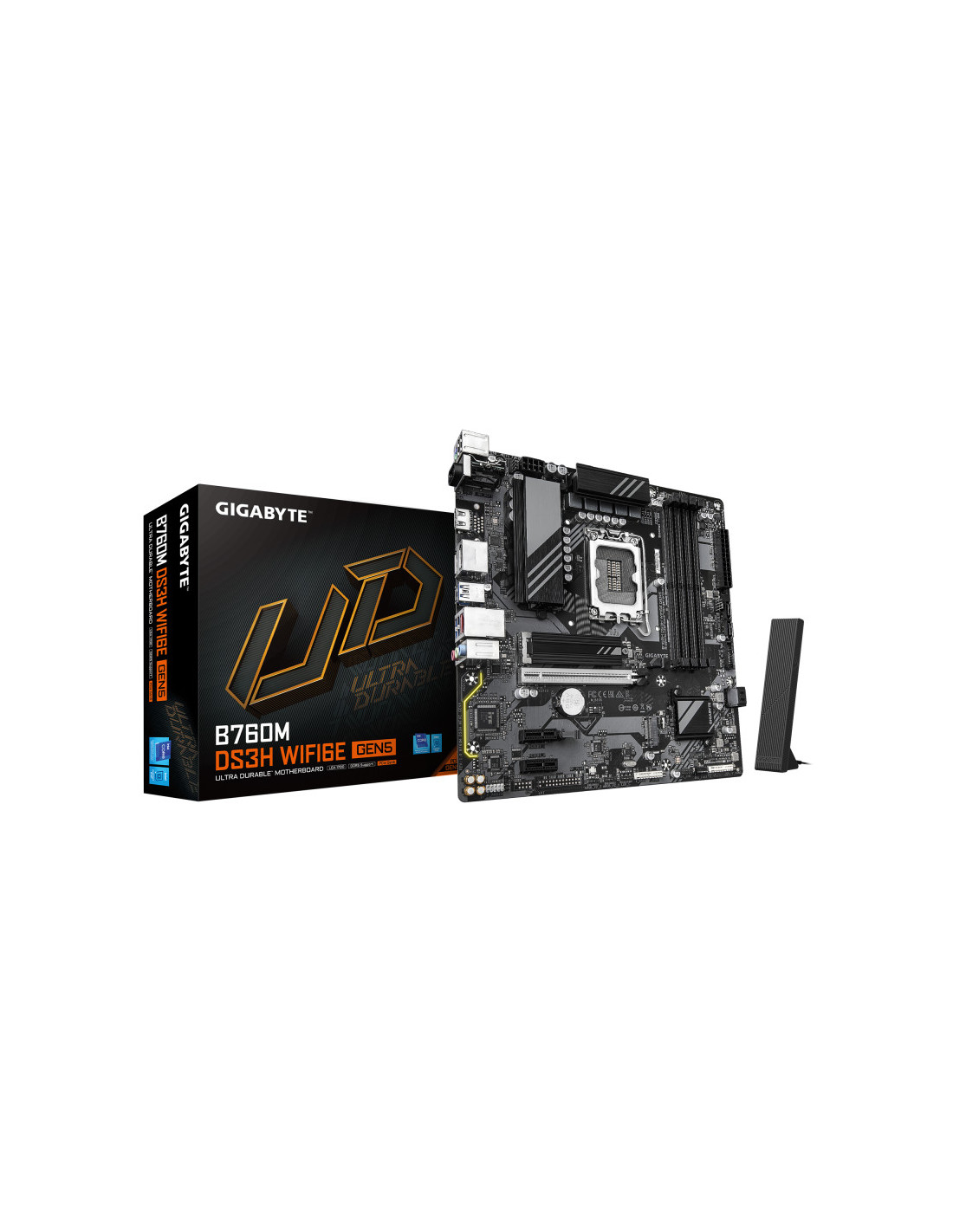

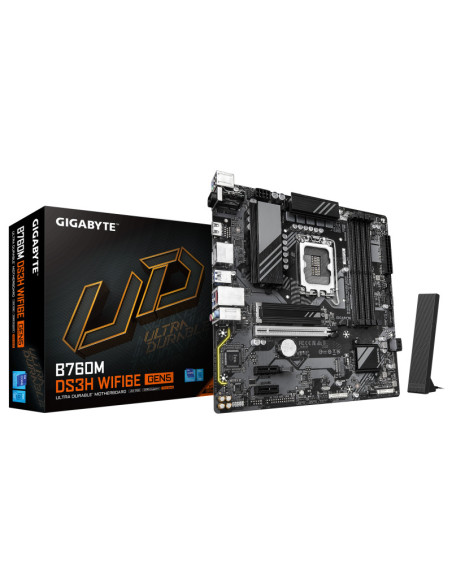

Blaci de baza GIGABYTE MB Gigabyte B760M DS3H WIFI6E GEN5
GIGABYTEPlaca de Baza GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 5.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Placa de Baza GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 5.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
- Producator procesor
- Intel
- Greutate
- 1.1 kg
- Bluetooth
- da
- Chipset
- Intel B760 Express
- Conectivitate
- Da
Wi-Fi 6E (802.11ax) - Brand
- GIGABYTE
- Memorie RAM (GB)
- 256
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Culoare
- Dark brown
- Versiune Bluetooth
- 5.3
- USB 3.2
- 0
3 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 2
- Depth
- 24.4 mm
- Width
- 244 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC897
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Bundled software
- Norton® Internet Security (OEM version)
- Battery weight
- 3 g
- WLAN controller model
- Intel Wi-Fi 6E AX210
- Country of origin
- China
- Wi-FI
- Da
- Package height
- 68 mm
- Package width
- 270 mm
- Package depth
- 268 mm
- Package weight
- 12 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 128 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- PCI Express x16 (Gen 5.x) slots
- 1
- Audio output channels
- 7.1 channels
- Cooling type
- Passive
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 4096 x 2304 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 3
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Da
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 3
- 12V power connector
- Da
- Products per shipping (inner) case
- 1 pc(s)
- Supported memory clock speed (max)
- 5600 MHz
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet
- LAN controller
- Realtek RTL8125
- Batteries included
- Da
- Screws included
- Da
- Antenna included
- Da
- Supported processor sockets
- LGA 1700
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPort version
- 1.2
- DisplayPorts quantity
- 2
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Da
- DVI-D ports quantity
- 0
- WiFi-AP antenna jack
- 2
- Ethernet LAN (RJ-45) ports
- 1
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Warranty period
- 3 year(s)
- MB-Socket
- 1700
- MB-Format
- micro-ATX
- PCI-Ex1
- 2
- PCI-Ex16
- 1
- RAM-Slots
- 4
- USB3
- 4-8
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Socket procesor
- LGA 1700
- HDCP
- Da
- Microphone in
- Da
- Supported memory clock speeds
- 5600,5200,4800,4400 MHz
- Numar sloturi memorie
- 4
- PS/2 ports quantity
- 1
- PCI Express x1 (Gen 3.x) slots
- 2
- S/PDIF out connector
- Da
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- Intel
- Niveluri RAID
- 0, 1, 5, 10
- Interfete stocare
- M.2, PCI Express 4.0, SATA III
4719331872809
