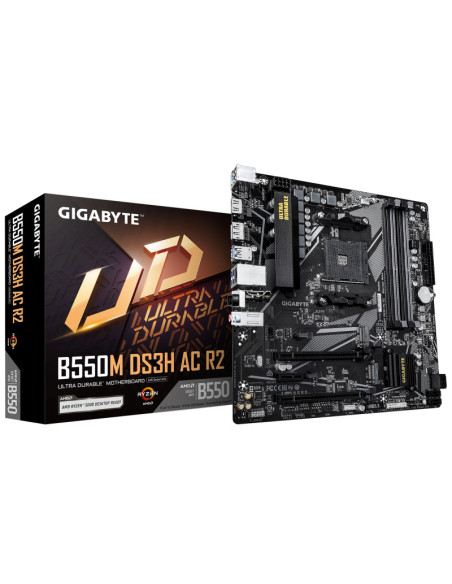

Blaci de baza GIGABYTE MB GIGABYTE B550M DS3H AC R2 AM4
GIGABYTEPlaca de Baza GIGABYTE B550M DS3H AC R2 AM4, 4x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Placa de Baza GIGABYTE B550M DS3H AC R2 AM4, 4x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
- Conectivitate
- Da
Wi-Fi 5 (802.11ac) - Producator procesor
- AMD
- Greutate
- 980 g
- Bluetooth
- da
- Chipset
- AMD B550
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 128
- Tip memorie RAM
- DDR4
DDR4-SDRAM - Culoare
- Dark brown
- Versiune Bluetooth
- 5.0
- USB 3.2
- 0
4 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- On-board graphics card
- Nu
- USB 2.0 ports quantity
- 2
- Depth
- 24.4 mm
- Width
- 244 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC1220-VB
- Memory channels
- Dual-channel
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Battery weight
- 3 g
- WLAN controller model
- Realtek RTL8821CE
- Wi-FI
- Da
- Package height
- 68 mm
- Package width
- 270 mm
- Package depth
- 268 mm
- Package weight
- 1.07 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 128 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 3.0
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Cooling type
- Passive
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 5120 x 2880 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Da
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 5
- Products per shipping (inner) case
- 1 pc(s)
- Supported memory clock speed (max)
- 4733 MHz
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 32 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- Gigabit Ethernet
- LAN controller
- Realtek RTL8111H
- Batteries included
- Da
- Screws included
- Da
- Antenna included
- Da
- Compatible processor series
- AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
- Supported processor sockets
- Socket AM4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Da
- DVI-D ports quantity
- 0
- WiFi-AP antenna jack
- 2
- Ethernet LAN (RJ-45) ports
- 1
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Warranty period
- 3 year(s)
- MB-Socket
- AM4
- MB-Format
- micro-ATX
- PCI-Ex1
- 1
- PCI-Ex16
- 2
- RAM-Slots
- 4
- USB3
- 4-8
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Socket procesor
- Socket AM4
- HDCP
- Da
- Microphone in
- Da
- Supported memory clock speeds
- 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
- Numar sloturi memorie
- 4
- Serial port headers
- 1
- PS/2 ports quantity
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
- Number of SATA II connectors
- 0
- Number of SATA connectors
- 0
- mSATA ports quantity
- 0
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- AMD
- Niveluri RAID
- 0, 1, 10
- Interfete stocare
- M.2, PCI Express 3.0, PCI Express 4.0, SATA III
4719331869908
