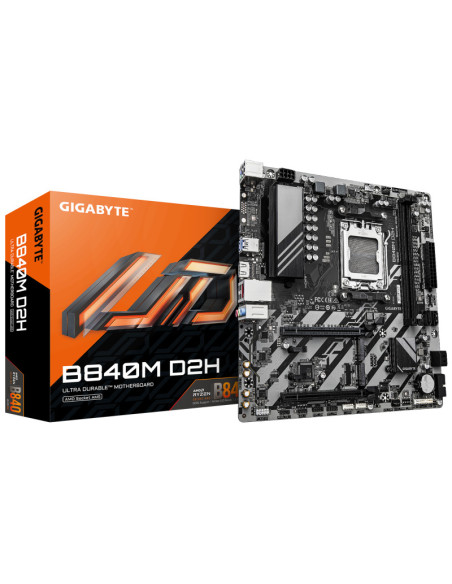

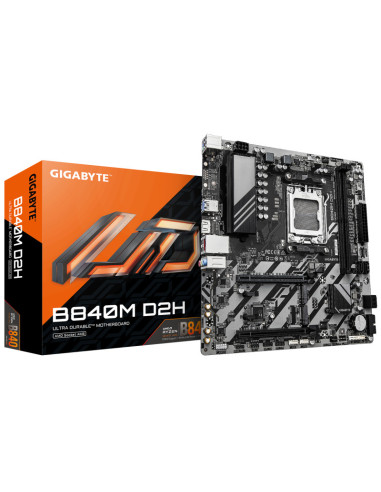

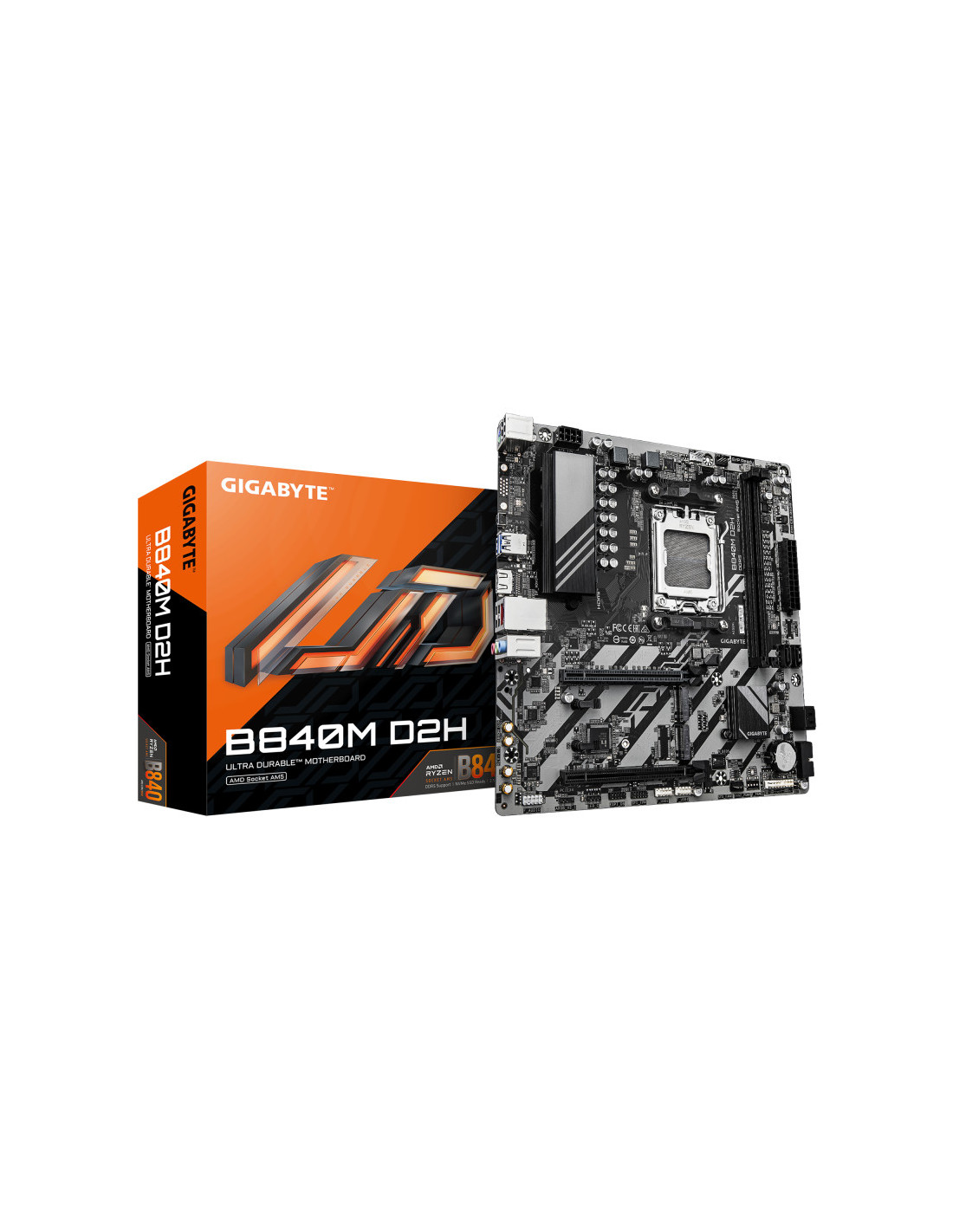

Blaci de baza GIGABYTE MB GIGABYTE B840M D2H AM5
GIGABYTEPlaca de Baza GIGABYTE B840M D2H AM5, 2x DDR5, 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Placa de Baza GIGABYTE B840M D2H AM5, 2x DDR5, 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
- Conectivitate
- Da
- Producator procesor
- AMD
- Greutate
- 940 g
- Chipset
- AMD B840
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 128
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Culoare
- Dark brown
- USB 3.2
- 0
2 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 4
- Depth
- 24.4 mm
- Width
- 244 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC897
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Battery weight
- 3 g
- Wi-FI
- Nu
- Package height
- 54 mm
- Package width
- 265 mm
- Package depth
- 265 mm
- Package weight
- 1.03 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 1st M.2 largest key size
- 2580
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 3.0
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Cooling type
- Passive
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Da
- Number of water pump connectors
- 1
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 3
- Products per shipping (inner) case
- 1 pc(s)
- Supported memory clock speed (max)
- 7600 MHz
- ECC сompatibility
- Non-ECC
- Maximum internal memory per slot
- 64 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet
- LAN controller
- Realtek RTL8125
- Batteries included
- Da
- Screws included
- Da
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Da
- DVI-D ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Warranty period
- 3 year(s)
- MB-Socket
- AM5
- MB-Format
- micro-ATX
- PCI-Ex1
- 0
- PCI-Ex16
- 2
- RAM-Slots
- 2
- USB3
- 4-8
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Socket procesor
- Socket AM5
- HDCP
- Da
- Microphone in
- Da
- Supported memory clock speeds
- 7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
- Numar sloturi memorie
- 2
- PS/2 ports quantity
- 1
- PCI Express x16 (Gen 3.x) slots
- 1
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- AMD
- Niveluri RAID
- 0, 1, 10
- Interfete stocare
- M.2, PCI Express 4.0, SATA III
4719331868116
