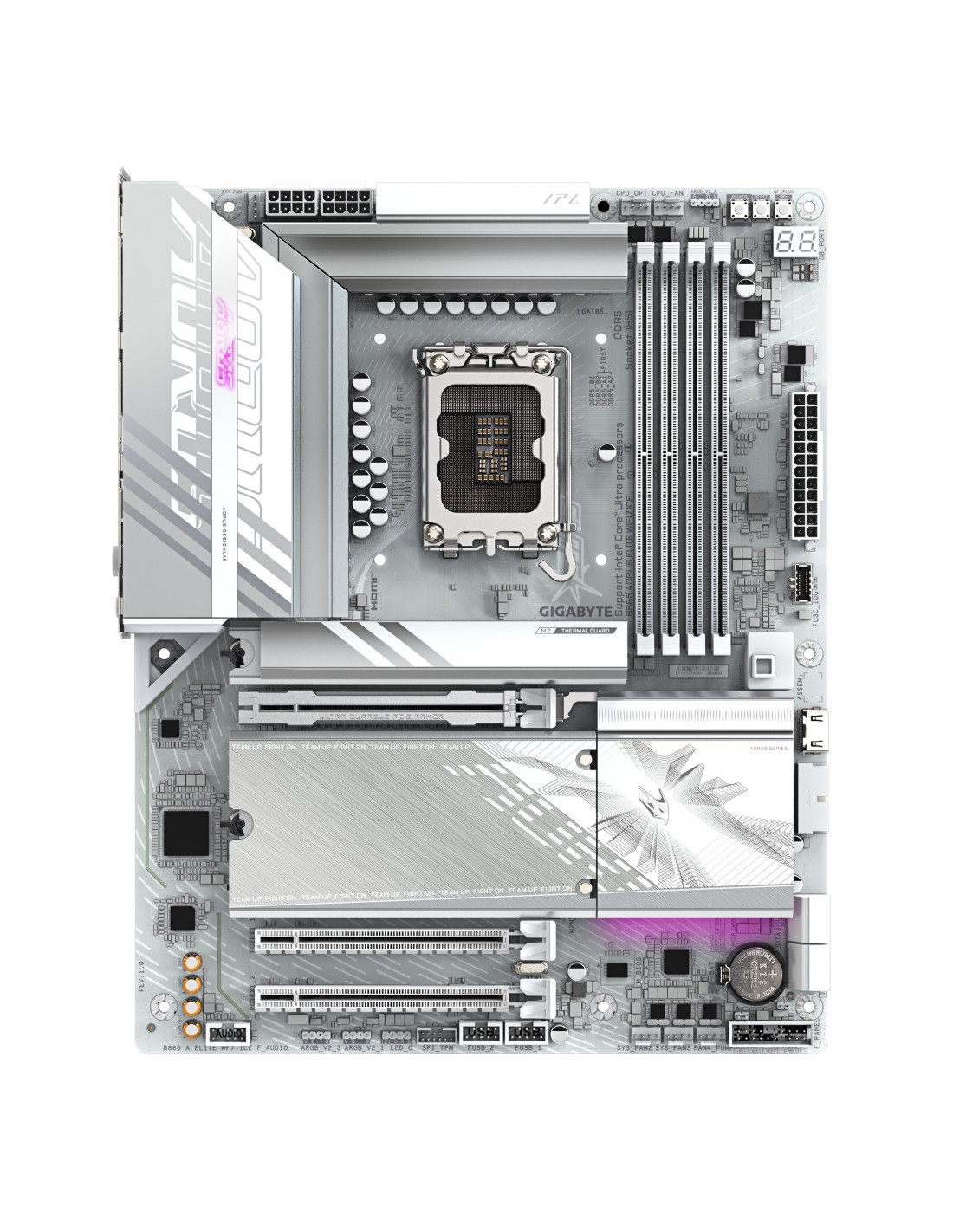

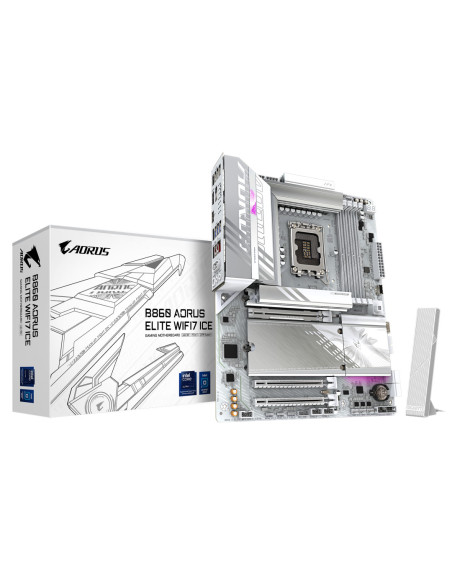

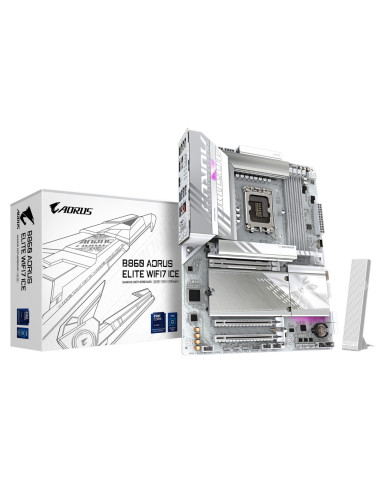

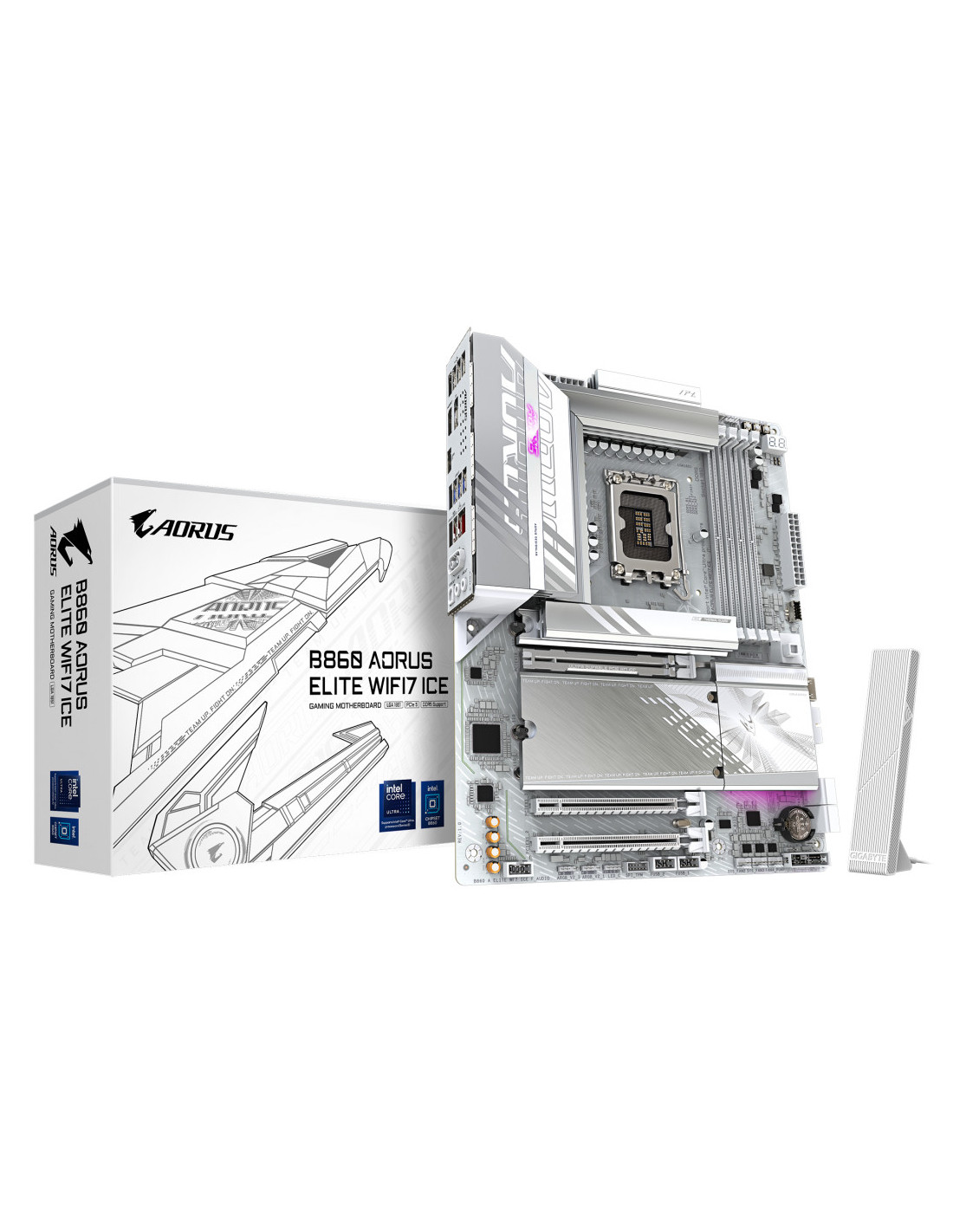

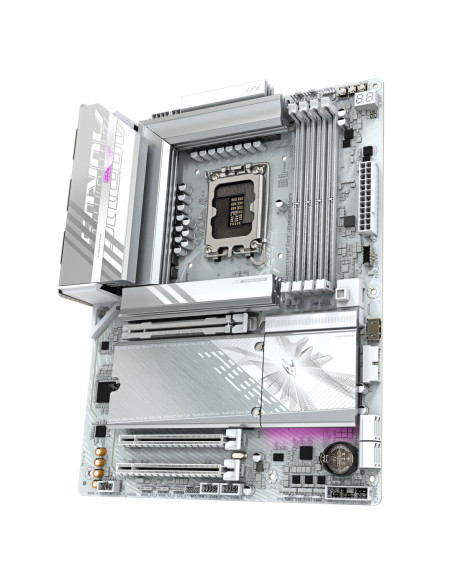

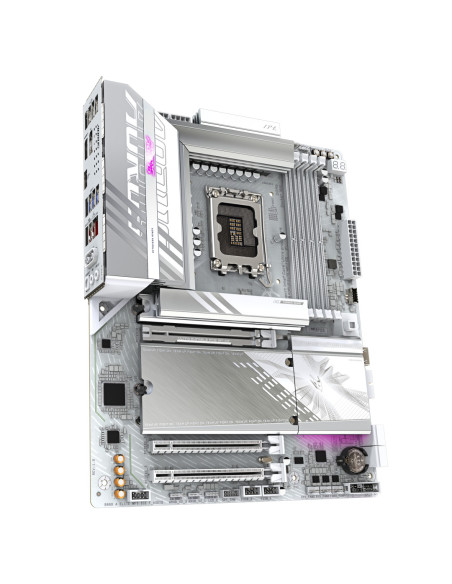

Blaci de baza GIGABYTE MB Gigabyte B860 AORUS ELITE WIFI7 ICE

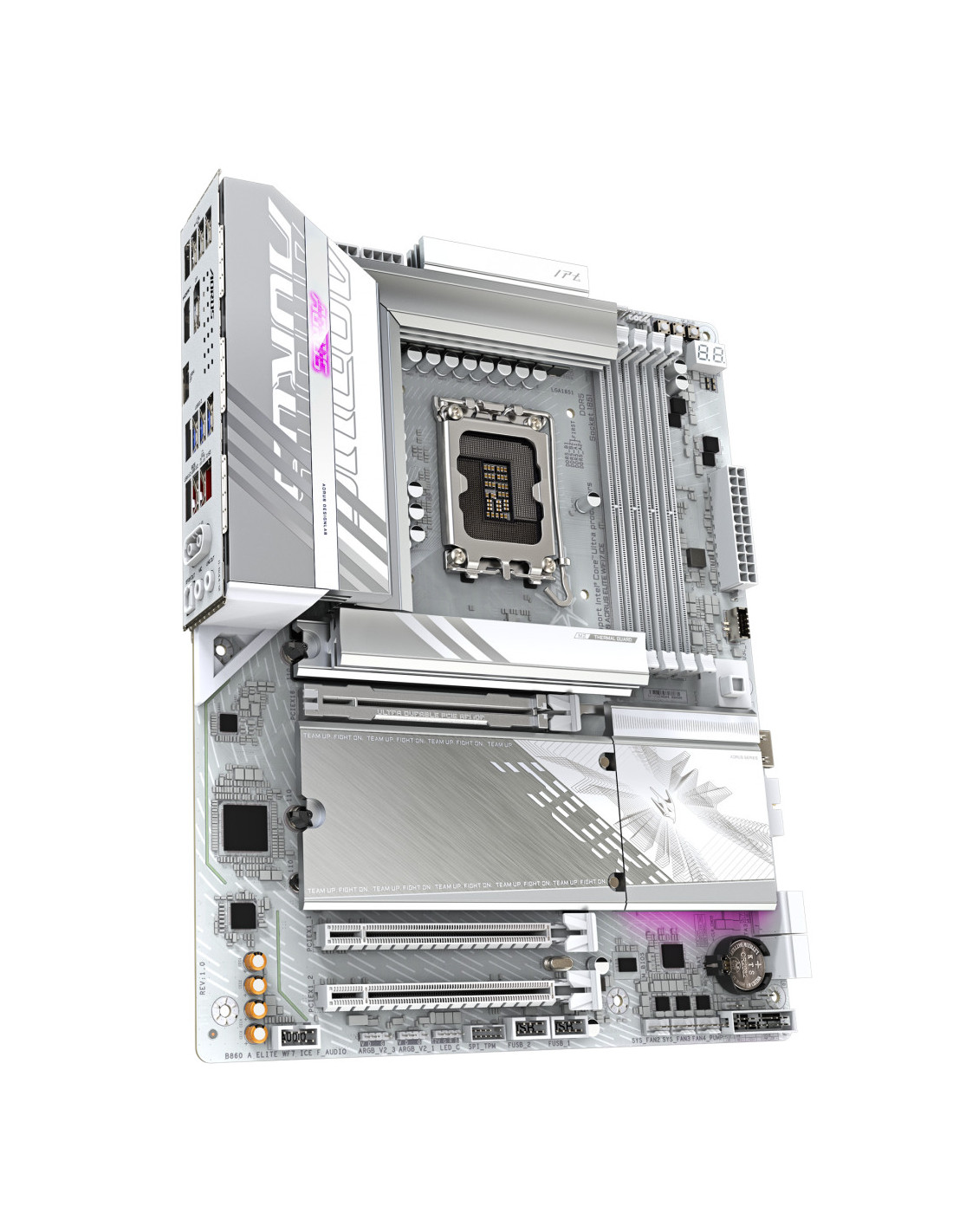

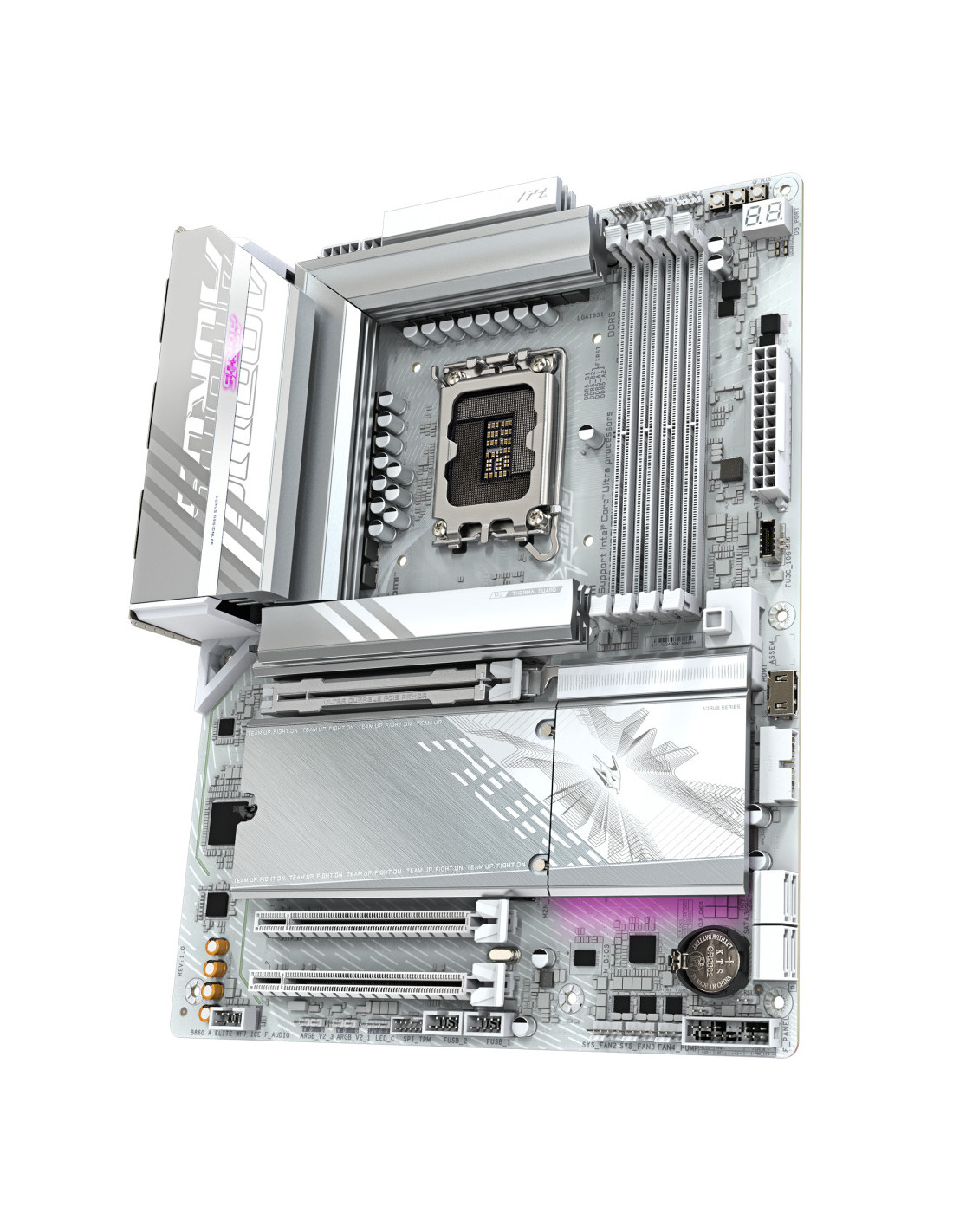

GIGABYTEPlaca de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB4 1x DP 1x HDMI 1x Front HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX
Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB4 1x DP 1x HDMI 1x Front HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX
- Conectivitate
- Da
Wi-Fi 7 (802.11be) - Producator procesor
- Intel
- Greutate
- 2.21 kg
- Chipset
- Intel B860
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 256
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Culoare
- White
- Versiune Bluetooth
- 5.4
- USB 3.2
- 0
4 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 4
- Depth
- 24.4 mm
- Width
- 30.5 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC897
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Battery weight
- 3 g
- WLAN controller model
- Realtek RTL8922AE
- Country of origin
- China
- Wi-FI
- Da
- Package height
- 80 mm
- Package width
- 335 mm
- Package depth
- 270 mm
- Package weight
- 2.49 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 2nd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 4.0
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 2
- Audio output channels
- 7.1 channels
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Front panel connector
- Da
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 4
- Number of EPS power connectors (8-pin)
- 2
- TPM connector
- Da
- Number of water pump connectors
- 2
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 4
- Supported memory clock speed (max)
- 9200 MHz
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet
- LAN controller
- Realtek RTL8125
- Screws included
- Da

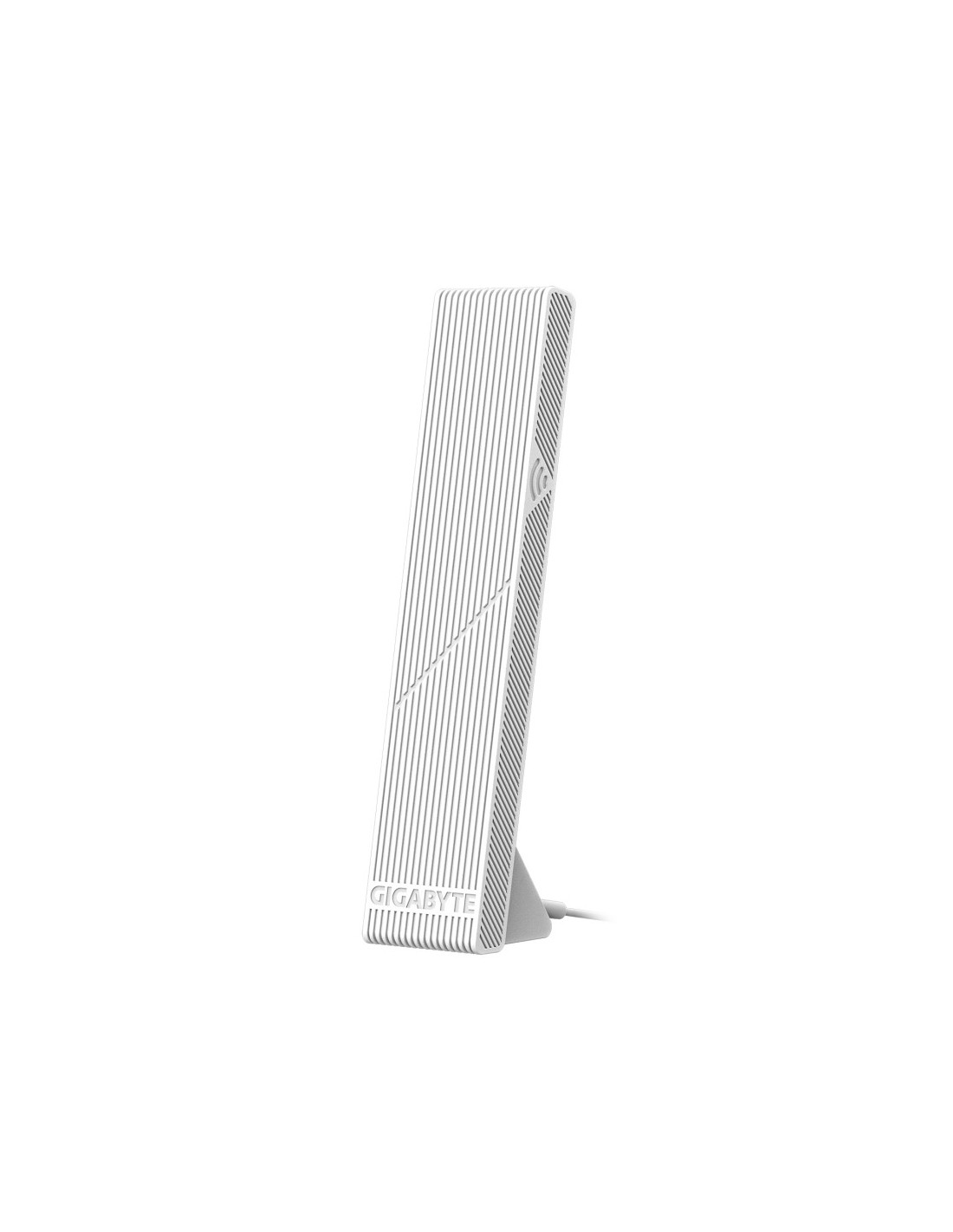

- Antenna included
- Da
- Compatible processor series
- Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- DisplayPort version
- 2.1
- Digital audio optical out
- 1
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Da
- DVI-D ports quantity
- 0
- S/PDIF out port
- Da
- WiFi-AP antenna jack
- 2
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Socket procesor
- LGA 1851 (Socket V1)
- HDCP
- Da
- USB4 Gen 2x2 ports quantity
- 1
- Supported memory clock speeds
- 5600,6400,9200 MHz
- Numar sloturi memorie
- 4
- Numar sloturi M.2
- 3
- Format placa de baza
- ATX
- Familie chipset
- Intel
- Niveluri RAID
- 0, 1, 5, 10
- Interfete stocare
- M.2, SATA III
