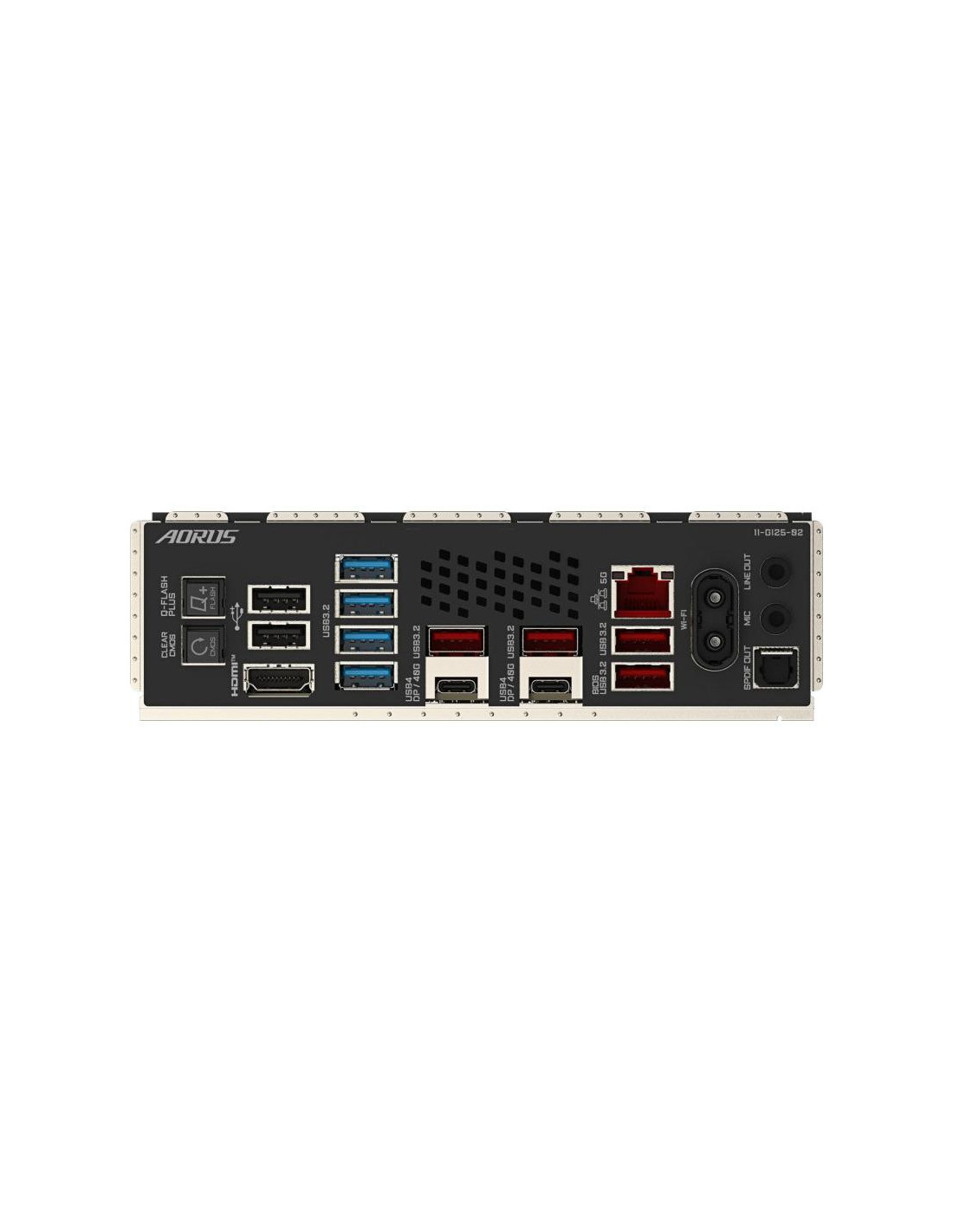

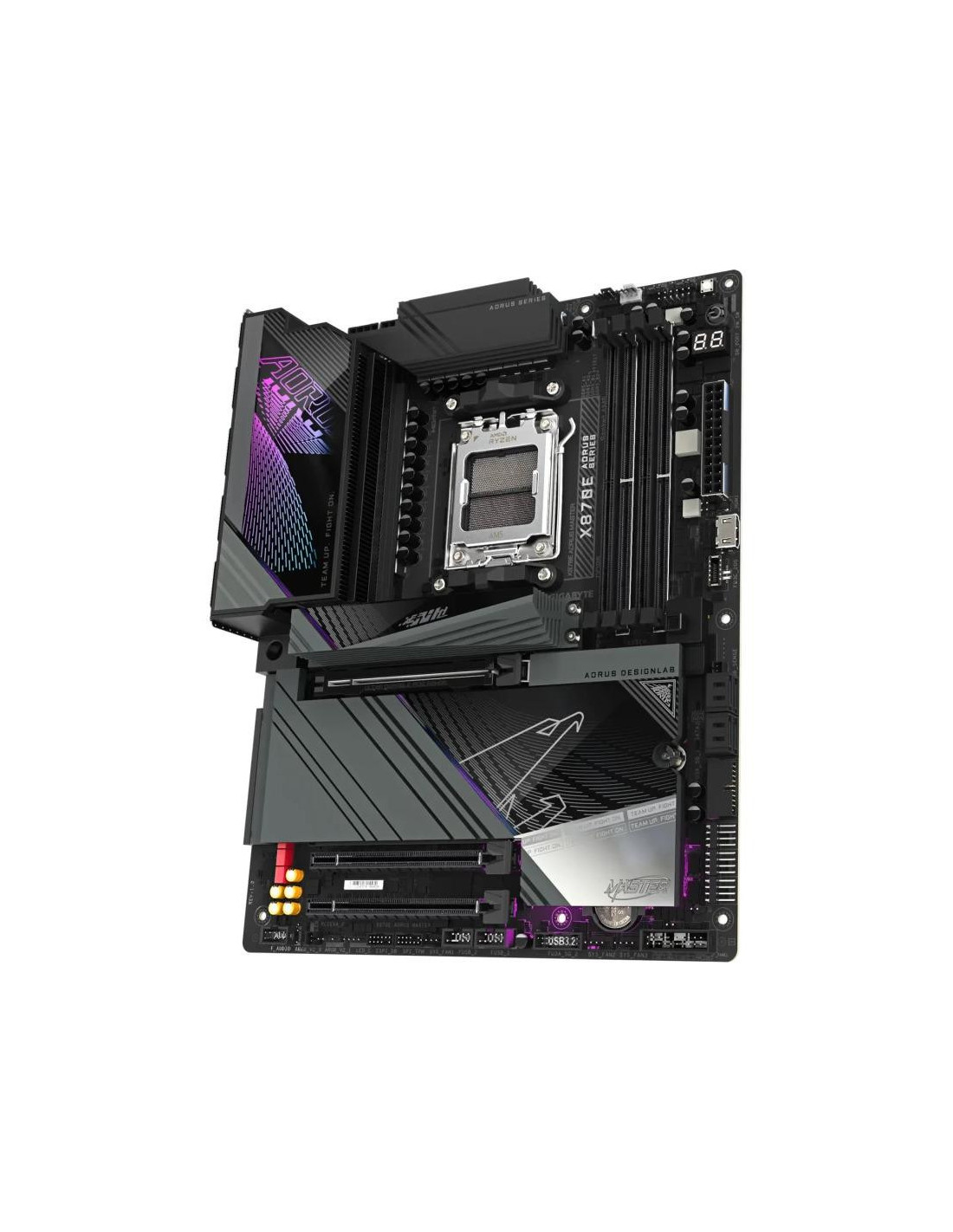

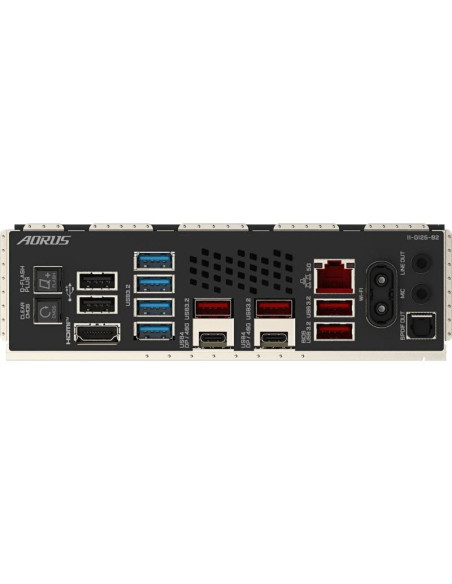

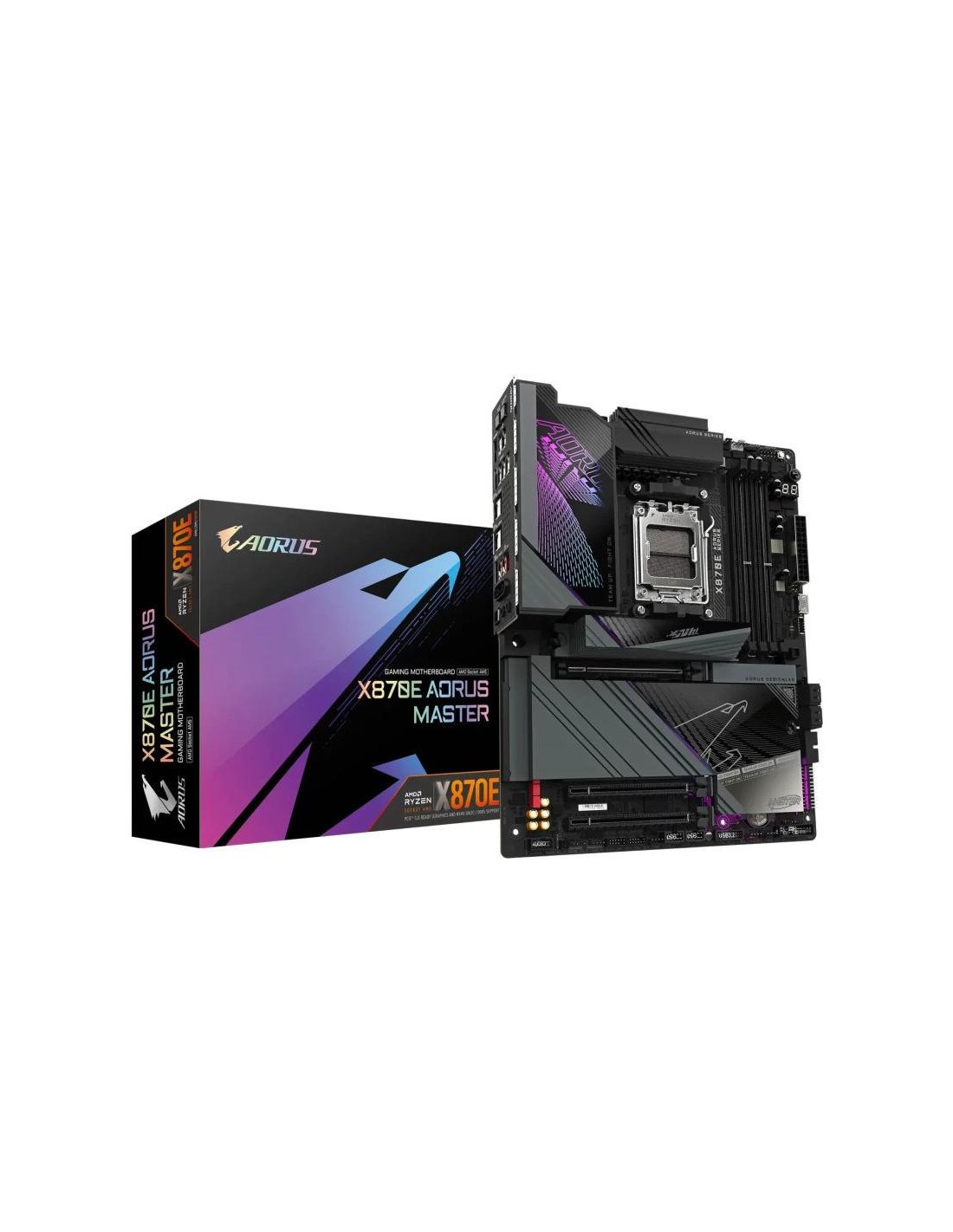

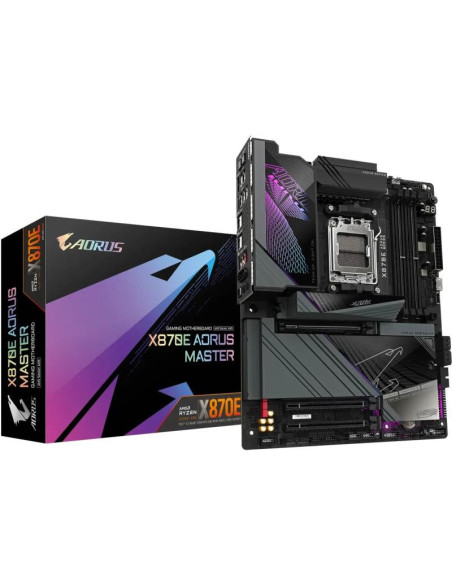

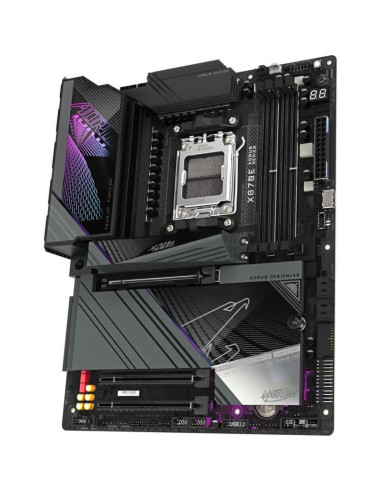

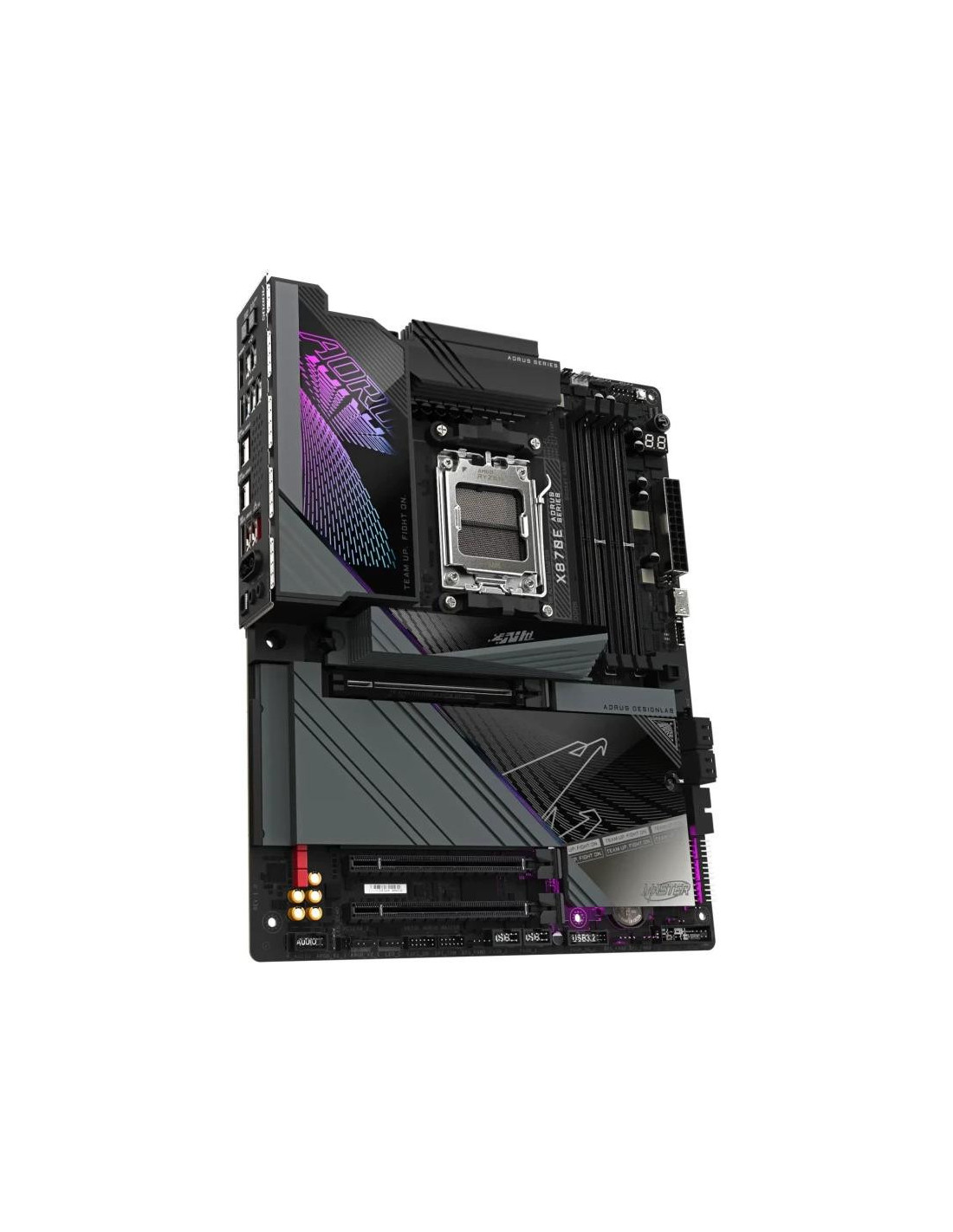

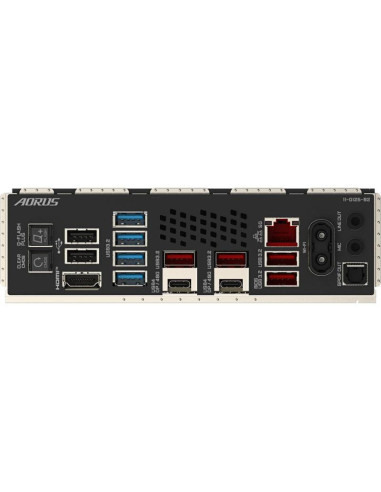

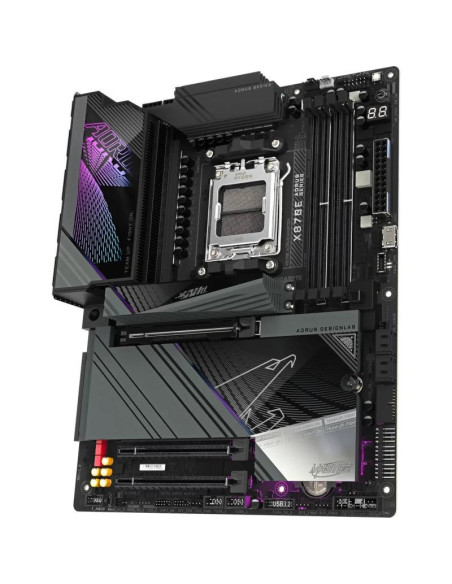

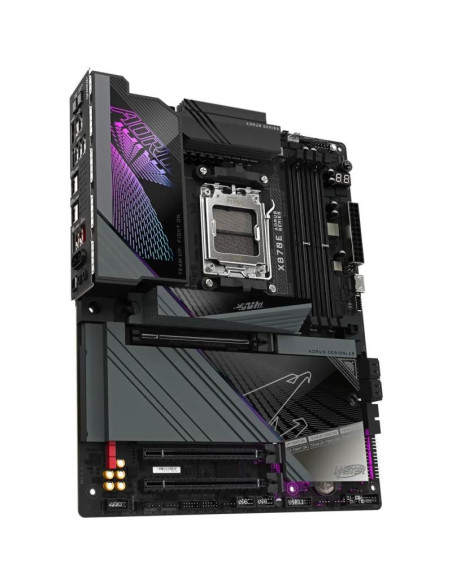

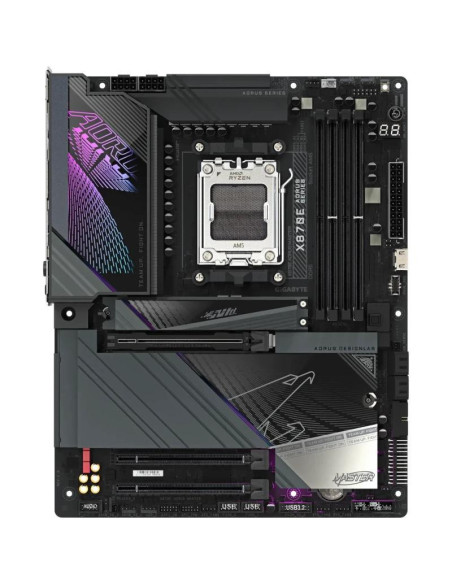

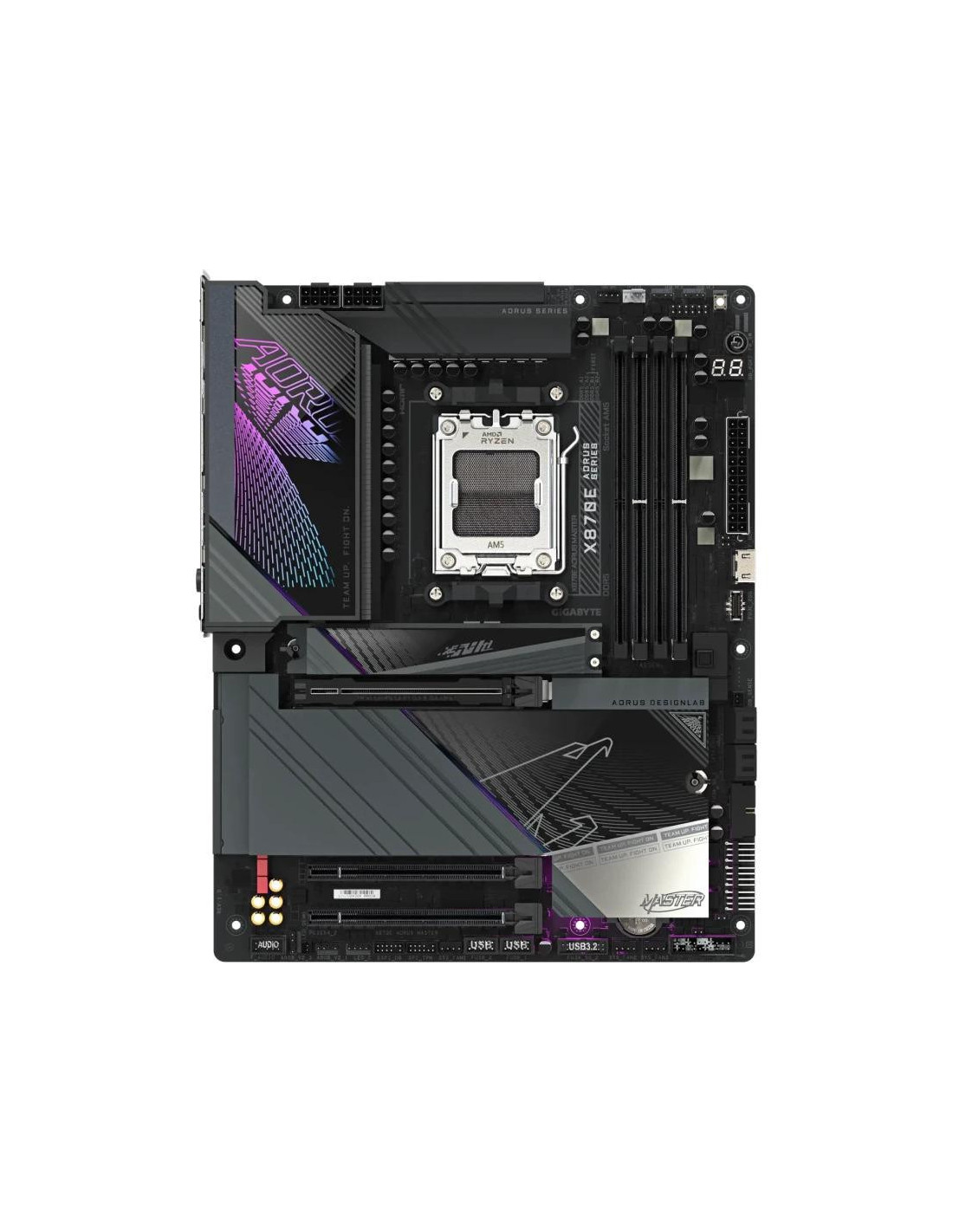

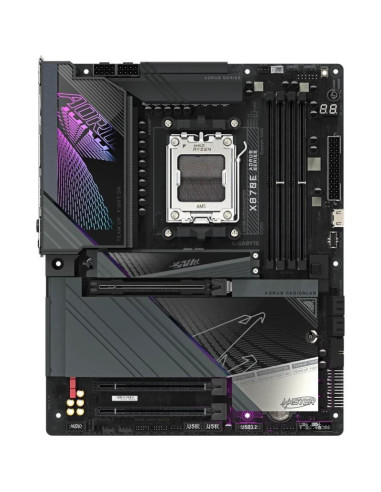

Blaci de baza GIGABYTE MB GIGABYTE X870E AORUS MASTER
GIGABYTEPlaca de Baza GIGABYTE X870E AORUS MASTER AM5, 4x DDR5, 2x USB4 1x HDMI 1x Front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Placa de Baza GIGABYTE X870E AORUS MASTER AM5, 4x DDR5, 2x USB4 1x HDMI 1x Front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
- Conectivitate
- Da
Wi-Fi 7 (802.11be) - Producator procesor
- AMD
- Greutate
- 2.54 kg
- Chipset
- AMD X870
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 256
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Versiune Bluetooth
- 5.3
- USB 3.2
- 0
4 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- On-board graphics card
- Nu
- USB 2.0 ports quantity
- 2
- USB4 Gen 3x2 ports quantity
- 0
- Depth
- 24.4 mm
- Width
- 30.5 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC1220
- Memory channels
- Dual-channel
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Battery weight
- 3 g
- WLAN controller model
- Qualcomm QCNCM865
- Country of origin
- China
- Wi-FI
- Da
- Package height
- 80 mm
- Package width
- 34.5 mm
- Package depth
- 294 mm
- Package weight
- 2.97 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- Clear CMOS button
- Da
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 4th M.2 highest PCI Express generation
- 4.0
- 4th M.2 largest key size
- 22110
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 5.0
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage
- Windows operating systems supported
- Windows 11 x64
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 6
- Number of EPS power connectors (8-pin)
- 2
- TPM connector
- Da
- Number of water pump connectors
- 2
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 5
- Supported memory clock speed (max)
- 8600 MHz
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 5 Gigabit Ethernet
- LAN controller
- Realtek RTL8126
- Screws included
- Da
- Antenna included
- Da
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- DisplayPort version
- 1.4
- DisplayPorts quantity
- 0
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Da
- DVI-D ports quantity
- 0
- S/PDIF out port
- Da
- WiFi-AP antenna jack
- 2
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 8
- Supported storage drive types
- HDD & SSD
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- Yes/No
- Maximum internal memory supported by processor
- 256 GB
- Socket procesor
- Socket AM5
- PCI Express x4 (Gen 3.x) slots
- 0
- USB 3.2 Gen 2x2 Type-C ports quantity
- 0
- USB4 Gen 2x2 ports quantity
- 2
- USB 3.2 Gen 2x2 connectors
- 1
- Supported memory clock speeds
- 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8200,8400,8600 MHz
- Numar sloturi memorie
- 4
- PS/2 ports quantity
- 0
- PCI Express x1 (Gen 3.x) slots
- 0
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x4 slots
- 2
- PCI Express x1 (Gen 4.x) slots
- 0
- PCI Express x4 (Gen 4.x) slots
- 0
- PCI Express x8 (Gen 4.x) slots
- 0
- Supported memory module capacities
- 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB
- PCI Express x8 (Gen 3.x) slots
- 0
- PCI Express x8 (Gen 5.x) slots
- 0
- Numar sloturi M.2
- 4
- Format placa de baza
- ATX
- Familie chipset
- AMD
- Niveluri RAID
- 0, 1, 10
- Interfete stocare
- M.2, SATA III
4719331864354
