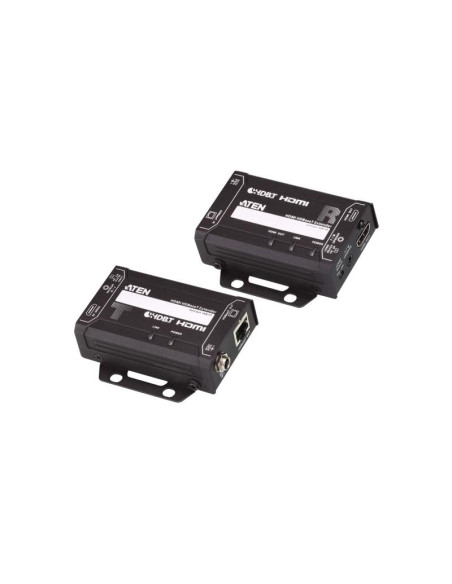

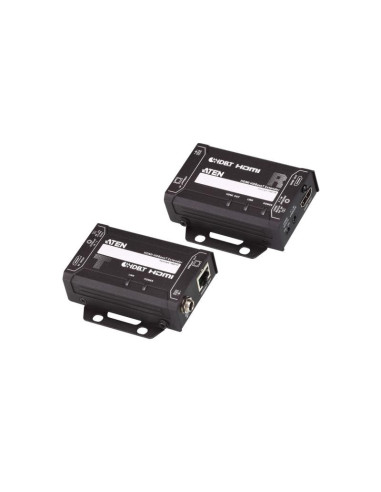

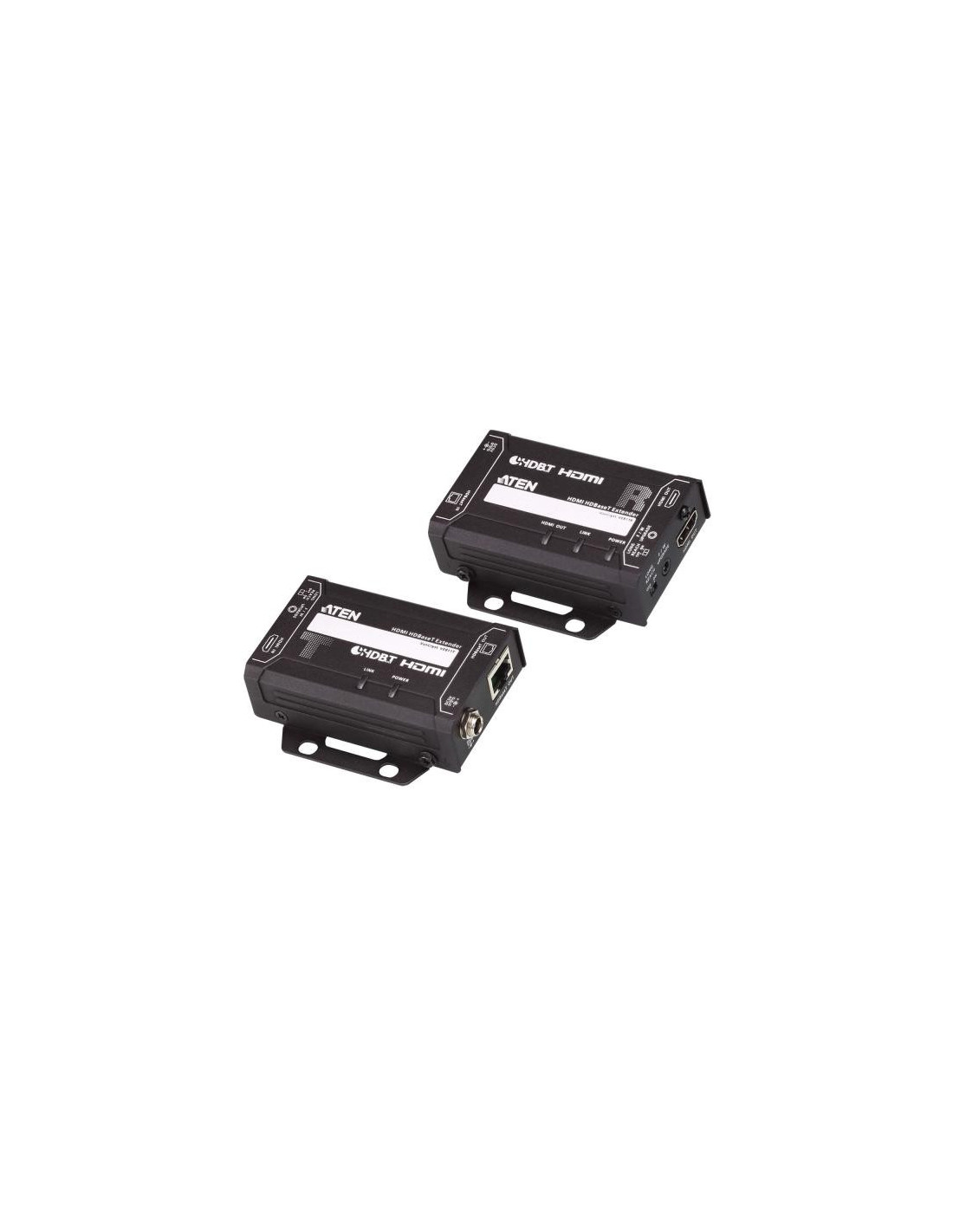

Extendere audio-video ATEN HDMI HDBaseT Extender Aten
ATENExtender Aten VE811-AT-G. Tipul: Emițător & receiver AV, Rezoluţia maximă: 4096 x 2160 Pixel, Tipuri de cabluri suportate: Cat5e, Cat6, Cat6a. Tehnologia de conectare: Prin cablu. Tensiune operare (emițător): 5 V, Tensiune operare (receptor): 5 V. Greutate: 630 g, Dimensiuni receiver (L x l x H): 86,4 x 73 x 24,7 mm, Greutatea receptorului: 170 g. Cantitate per ambalaj: 2 buc., Lăţime de ambalaj: 59 mm, Adâncimea de ambalaj: 239 mm
Extender Aten VE811-AT-G. Tipul: Emițător & receiver AV, Rezoluţia maximă: 4096 x 2160 Pixel, Tipuri de cabluri suportate: Cat5e, Cat6, Cat6a. Tehnologia de conectare: Prin cablu. Tensiune operare (emițător): 5 V, Tensiune operare (receptor): 5 V. Greutate: 630 g, Dimensiuni receiver (L x l x H): 86,4 x 73 x 24,7 mm, Greutatea receptorului: 170 g. Cantitate per ambalaj: 2 buc., Lăţime de ambalaj: 59 mm, Adâncimea de ambalaj: 239 mm
- Material
- Metal
- Greutate
- 630 g
- Brand
- ATEN
- Rezoluție
- 4096 x 2160
- Culoare
- Black
- Storage relative humidity (H-H)
- 0 - 80%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- DC-in jack
- Da
- Package height
- 160 mm
- Package width
- 59 mm
- Package depth
- 239 mm
- Package weight
- 705 g
- Quantity per pack
- 2 pc(s)
- Maximum resolution
- 4096 x 2160 pixels
- Quick start guide
- Da
- Products per master (outer) case
- 5 pc(s)
- Master (outer) case net weight
- 3.15 kg
- Master (outer) case height
- 175 mm
- Master (outer) case length
- 325 mm
- Master (outer) case width
- 250 mm
- Type
- AV transmitter & receiver
- Connectivity technology
- Wired
- Master (outer) case gross weight
- 4.02 kg
- Bandwidth
- 340 MHz
- HDCP
- Da
- Maximum transfer distance
- 150 m
- RJ-45 input ports
- 1
- Impedance
- 100 Ω
- Number of HDMI outputs
- 1
- HDMI in
- 1
- Cable types supported
- Cat5e, Cat6, Cat6a
- RJ-45 output ports
- 1
- Audio input
- 1
- Audio output
- 1
- Operating voltage (receiver)
- 5 V
- Operating voltage (transmitter)
- 5 V
- Receiver dimensions (WxDxH)
- 86.4 x 73 x 24.7 mm
- Receiver weight
- 170 g
- Transmitter dimensions (WxDxH)
- 86.4 x 73 x 24.7 mm
- Transmitter weight
- 160 g
- MAXIMUM-RESOLUTION
- 1920x1200@60Hz
- MAXIMUM-DISTANCE
- 150M
