Switch-uri Dell EMC S5224F-ON Switch
Switch-uri Dell EMC S5224F-ON Switch

Switch-uri Dell EMC S5224F-ON Switch

Dell

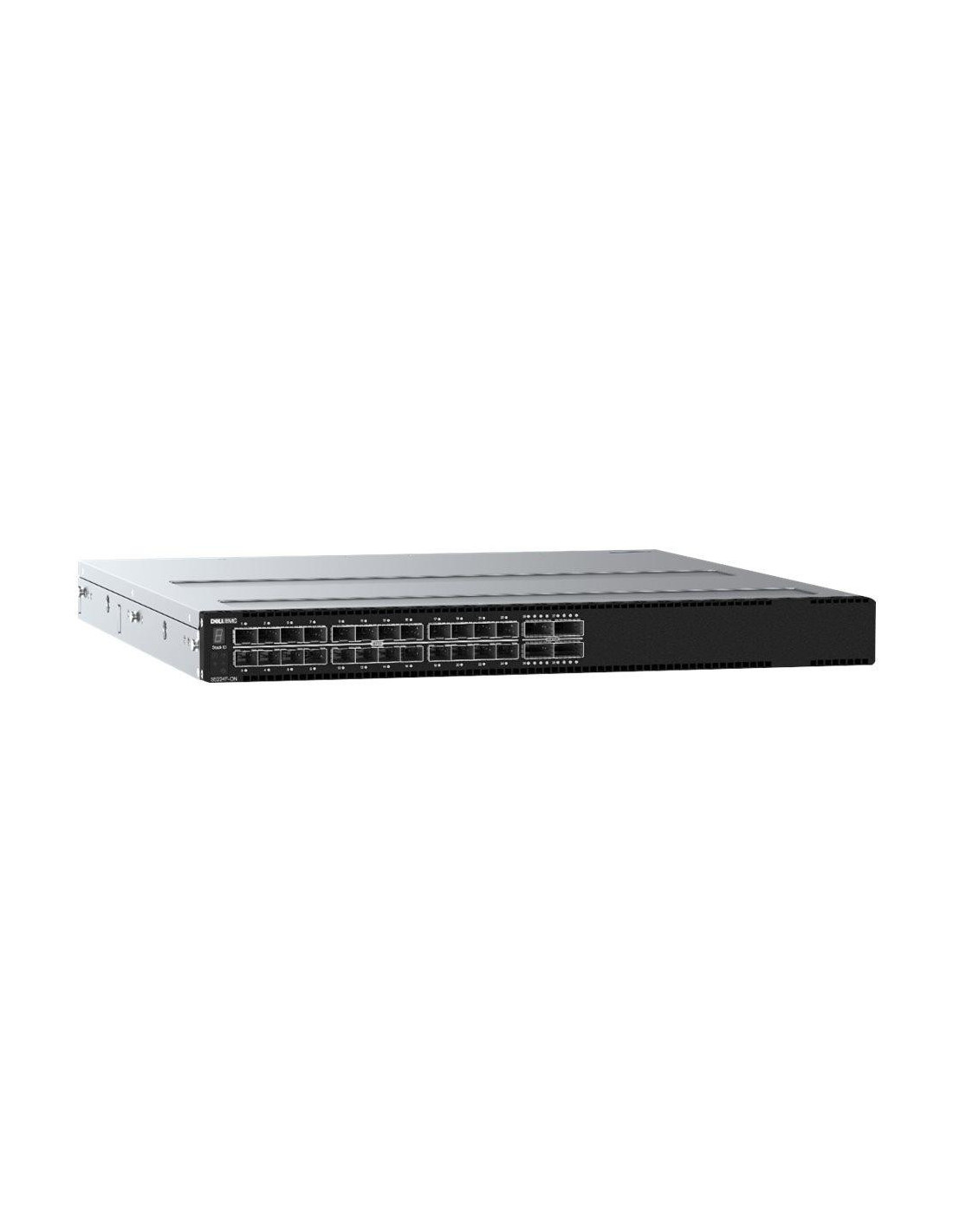

Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28 PORTS IO TO PSU AIR 2X PSU OS10, 1Yr
210-APHQ17421362
43.545,48 lei
Include TVA


Dell EMC S5224F-ON SWITCH 24X 25GBE SFP28 4X 100GBE QSFP28 PORTS IO TO PSU AIR 2X PSU OS10, 1Yr
Tip switch
Retea Fibra Optica
Greutate
9.7 kg
Brand
DELL
Sistem de operare
Dell SmartFabric OS10
Dimensiuni
460 x 44 x 434 mm
Alimentare
2x PSU
Caracteristici speciale
Flow control, full duplex capability, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Pro...
PoE
Nu
Conectori
1x port RJ45 consola/management cu RS232
Standarde
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1588v2
Viteza transfer LAN
25 Gbps
Management
Da
Securitate
MD5, RADIUS, TACACS, Secure Shell v.2 (SSH2)
Numar porturi
24x SFP284x QSFP28 (uplink)
Putere consumata (W)
Maximum: 455 WTipic: 200 W
Switch capacity
1.08 Tbps (2.16 Tbps full duplex)
Tabela de adrese MAC
288K
Tehnologie de cablare
Base-X SFP28
Montare in rack
Da, 1RU
Memorie
8 GB
Memorie Flash
16 GB
Layer
Layer 3
Viteza Transfer
10G+
Memorie Buffer
32 MB
Porturi RJ 45
24 - 32
Remote Management Protocol
SNMP 1, Telnet, SNMP 2c, TFTP, SSH-2, CLI, NTP
Tensiune de intrare
100–240 VAC 50/60 Hz
Porturi SFP
24X 25GBE SFP28
Protocoale de rutare
OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, static IP routing, IGMPv3, OSPFv3, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR, MLDv3, MSTP
Metoda forwarding
720 Mpps (1.42 Bpps full duplex)
Rutare IP
IPv4: 128000IPv6: 64000
