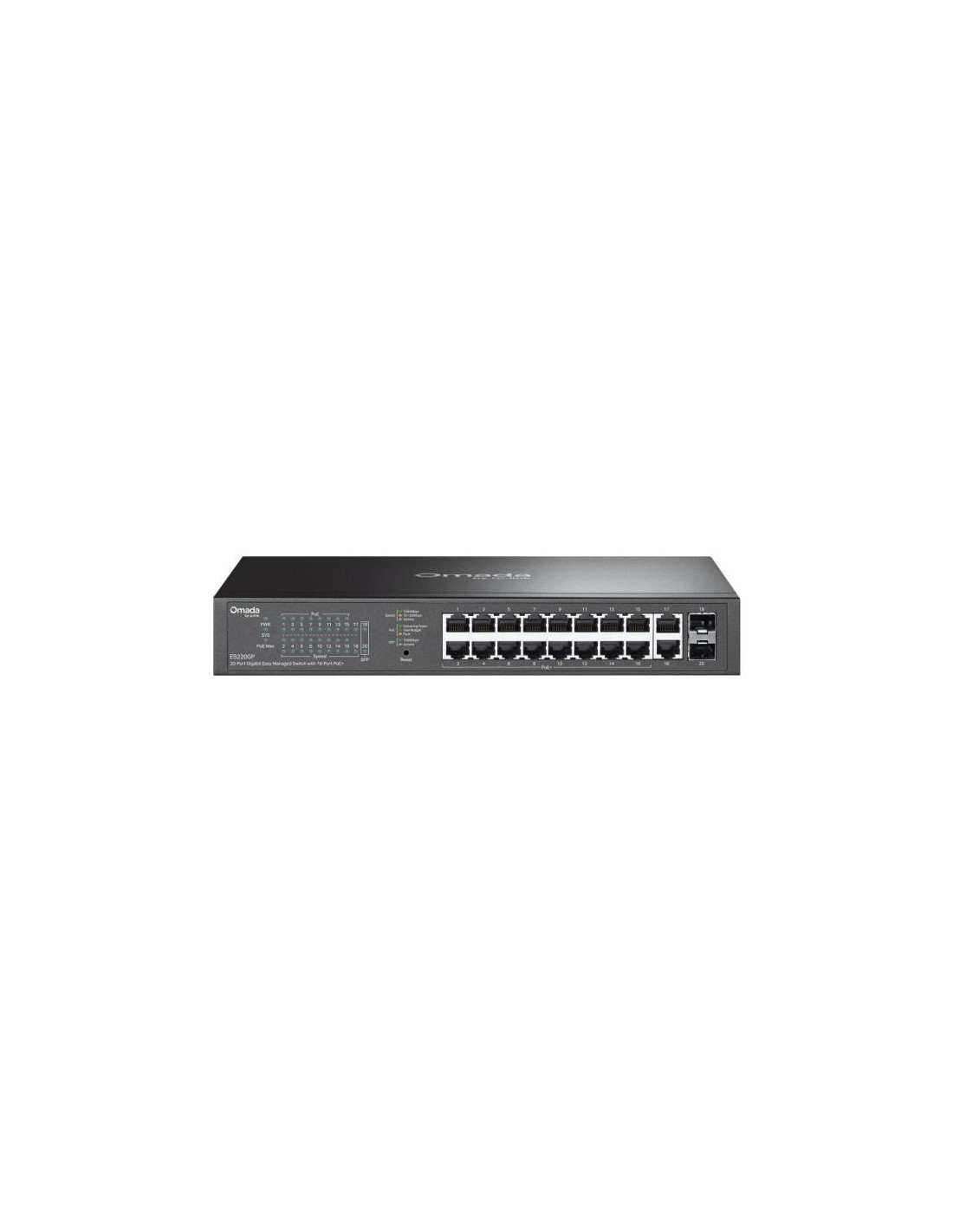

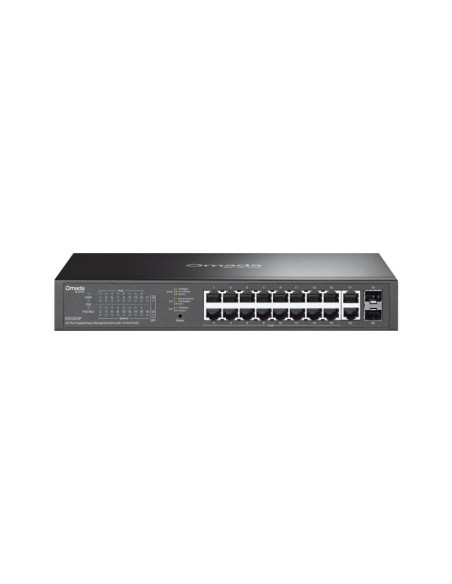

Switch-uri TP-LINK Omada 20-Port Switch ES220GP
Tp-LinkOmada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
- Brand
- TP-LINK
- Culoare
- Black
- Cables included
- AC
- Width
- 294 mm
- Height
- 44 mm
- Depth
- 180 mm
- Power source
- AC
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- -5 - 40 °C
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 182.43 W
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Housing material
- Metal
- Storage relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Input current
- 2.5 A
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Noise level
- 20.1 dB
- Mean time between failures (MTBF)
- 320156 h
- Power over Ethernet (PoE)
- Da
- Total Power over Ethernet (PoE) budget
- 150 W
- Power over Ethernet (PoE) type supported
- PoE+
- Web-based management
- Da
- Networking standards
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- MAC address table
- 8000 entries
- Store-and-forward
- Da
- Switching capacity
- 40 Gbit/s
- Rack mounting
- Da
- Flow control support
- Da
- 10G support
- Nu
- User guide
- Da
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP+ modules quantity
- 0
- SFP module slots quantity
- 2
- Basic switching RJ-45 Ethernet ports quantity
- 18
- Rackable
- Nu
- VLAN support
- Da
- Quality of Service (QoS) support
- Da
- Cloud-managed
- Da
- Power connector
- AC-in jack
- IGMP snooping
- Da
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
- LAN-Ports
- 8
- Stackable
- Nu
- LAN-Port-Type
- FastEthernet
- Redundant-PSU
- Nu
- Auto MDI/MDI-X
- Da
- Jumbo frames support
- Da
- Switch type
- Managed
- Multicast support
- Da
- Broadcast storm control
- Da
- Port mirroring
- Da
- Link aggregation
- Da
- DHCP features
- DHCP client
- Auto-negotiation
- Da
- Packet buffer memory
- 4 MB
- Forwarding rate
- 29.76 Mpps
- Power over Ethernet (PoE) power per port
- 30 W
- Number of VLANs
- 32
- Gigabit Ethernet (copper) ports quantity
- 18
- Fanless
- Da
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
- Number of queues
- 8
