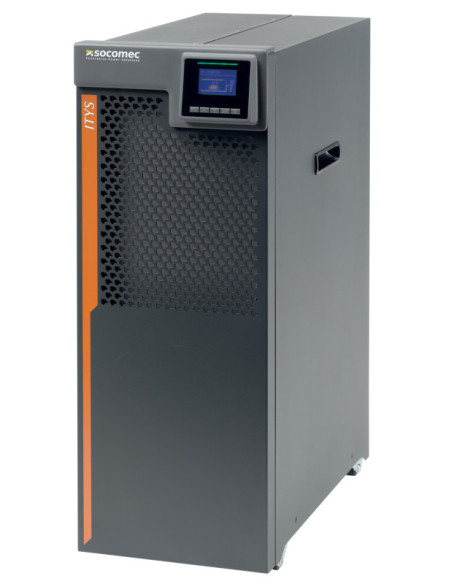

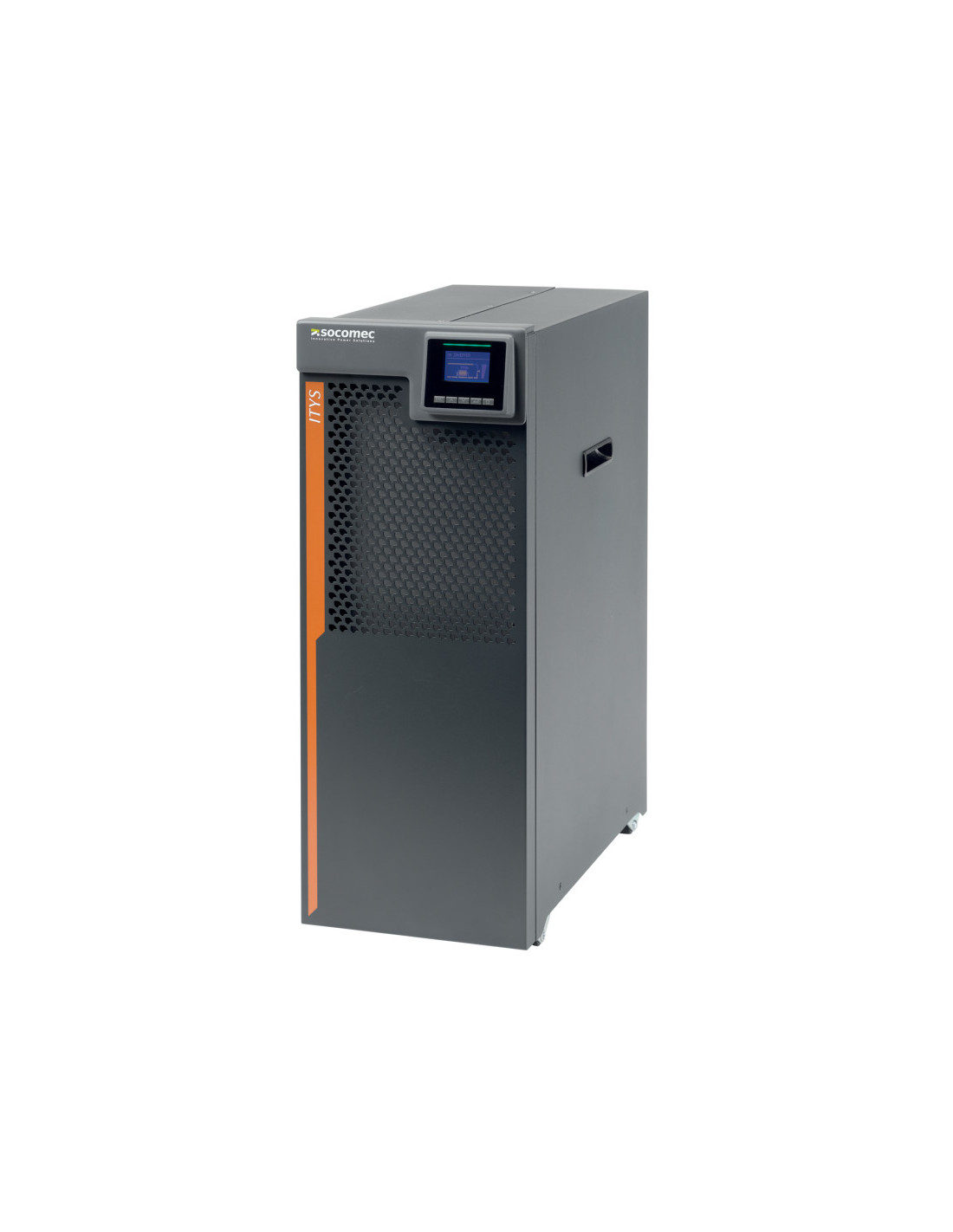

UPS SOCOMEC ITYS 10000VA VFI UPS 1/1 PF 1 WI
UPS SOCOMEC ITYS 10000VA VFI UPS 1/1 PF 1 WI

UPS SOCOMEC ITYS 10000VA VFI UPS 1/1 PF 1 WI

SOCOMEC
ITYS 10000VA VFI UPS 1/1 PF=1 WITH BATTERY AND MANUAL BYPASS INTEGRATED
ITY3-TW100B
Preț la cerere
Include TVA
Cere ofertă

ITYS 10000VA VFI UPS 1/1 PF=1 WITH BATTERY AND MANUAL BYPASS INTEGRATED
Form factor
Tower
Greutate
61 kg
Brand
SOCOMEC
Culoare
Black, Grey, Orange
Battery technology
Sealed Lead Acid (VRLA)
Depth
469 mm
Width
225 mm
Height
596 mm
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Battery voltage
192 V
Operating altitude
0 - 1000 m
Country of origin
China
Efficiency
95%
Cooling type
Active
Ethernet LAN (RJ-45) ports
1
Certification
IEC/EN 62040-2, AS 62040.2 IEC/EN 62040-3 CE, RCM (E2376)
Control type
Buttons
International Protection (IP) code
IP20
LED indicators
Da
Manual
Da
Charging current
12 A
Display type
LCD
Built-in fan
Da
Noise level
55 dB
Crest factor
3:1
Efficiency (ECO mode)
98%
Input operation voltage (min)
160 V
ECO mode
Da
Input frequency
40/70 Hz
Number of input phases
1
Number of output phases
1
UPS topology
Double-conversion (Online)
Output power
10000 W
Output operation voltage (max)
240 V
Emergency Power Off (EPO)
Da
Input operation voltage (max)
276 V
Waveform
Sine
Output operation voltage (min)
220 V
Output power factor
1
RS-232 ports
1
Power protection features
Short circuit
Typical backup time at full load
4.3 min
Output frequency
50/60 Hz
USB port type
USB Type-B
Input power factor
0.99
Safety
IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Capacitate putere iesire
10 kVA
