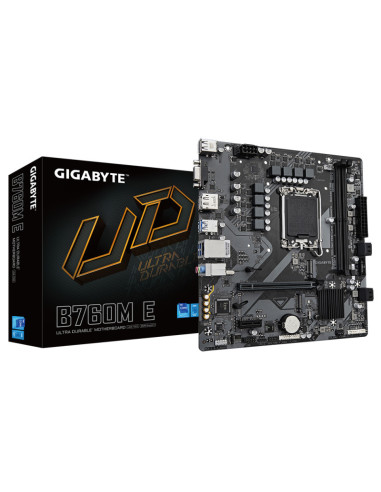

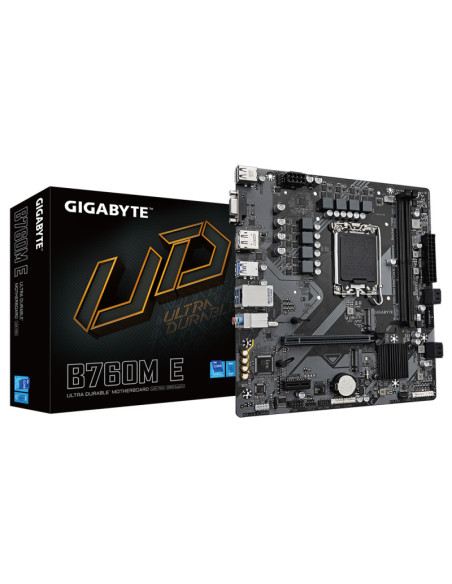

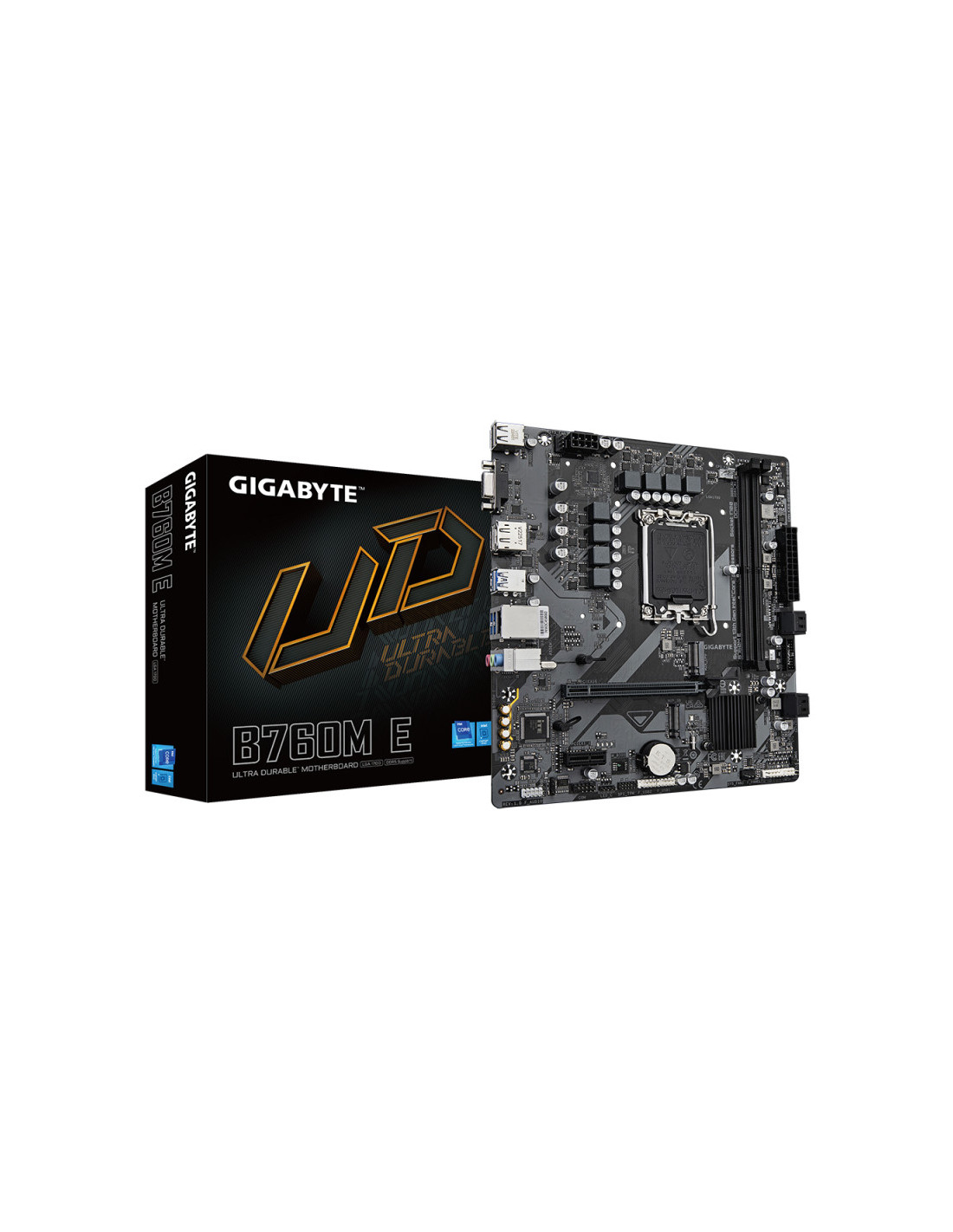

Blaci de baza GIGABYTE MB GIGABYTE B760M E LGA1700
GIGABYTEPlaca de Baza GIGABYTE B760M E LGA1700, 2x DDR5, 1x D-Sub 1x DP, 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Placa de Baza GIGABYTE B760M E LGA1700, 2x DDR5, 1x D-Sub 1x DP, 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
- Chipset
- Intel B760
- Conectivitate
- Da
- Producator procesor
- Intel
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 128
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Culoare
- Dark brown
- USB 3.2
- 0
4 - HDMI
- 1
- Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 2
- Depth
- 215 mm
- Width
- 230 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC897
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Battery weight
- 3 g
- Country of origin
- China
- Wi-FI
- Nu
- Package height
- 54 mm
- Package width
- 265 mm
- Package depth
- 265 mm
- Package weight
- 900 g
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 128 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Cooling type
- Passive
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Da
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 1
- 12V power connector
- Da
- Products per shipping (inner) case
- 1 pc(s)
- Supported memory clock speed (max)
- 7200 MHz
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- Gigabit Ethernet
- LAN controller
- Realtek RTL8111H
- Batteries included
- Da
- Screws included
- Da
- Supported processor sockets
- LGA 1700
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPort version
- 1.2
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- Line-in
- Da
- DVI-D ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Warranty period
- 3 year(s)
- MB-Socket
- 1700
- MB-Format
- micro-ATX
- PCI-Ex1
- 1
- PCI-Ex16
- 1
- RAM-Slots
- 2
- USB3
- 4-8
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Socket procesor
- LGA 1700
- HDCP
- Da
- Microphone in
- Da
- Supported memory clock speeds
- 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz
- Numar sloturi memorie
- 2
- Serial port headers
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- S/PDIF out connector
- Da
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- Intel
- Niveluri RAID
- 0, 1, 5, 10
- Interfete stocare
- M.2, SATA III
