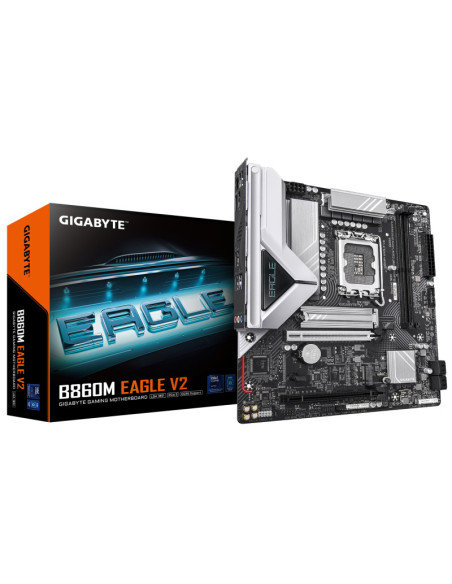

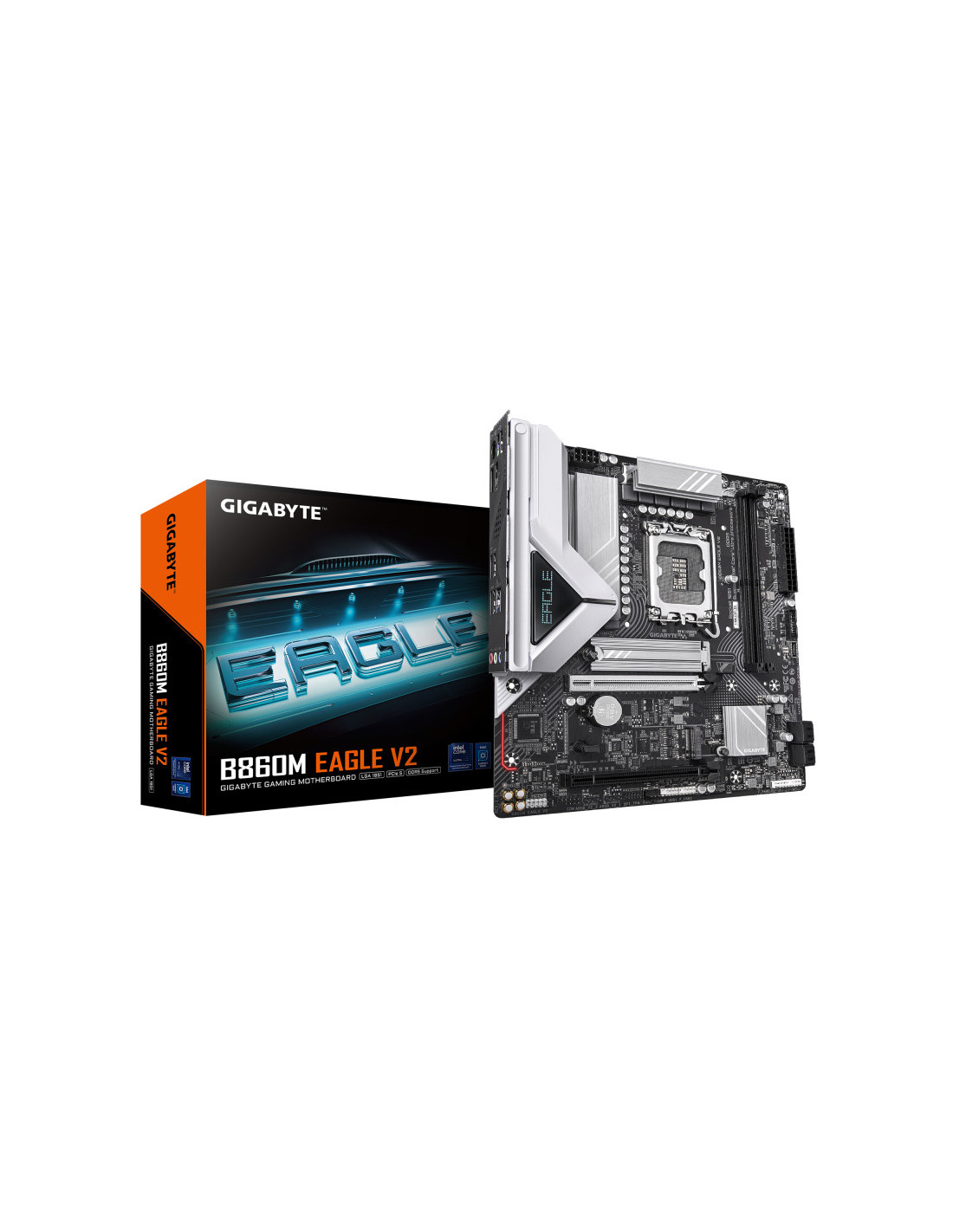

Blaci de baza GIGABYTE MB Gigabyte B860M EAGLE V2
GIGABYTEPlaca de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
- Format
- Micro-ATX (mATX)
- Conectivitate
- Da
- Producator procesor
- Intel
- Greutate
- 1.01 kg
- Bluetooth
- nu
- Chipset
- Intel B860
- Sloturi M.2
- 2
- Tip memorie
- DDR5
- Brand
- GIGABYTE
- Memorie RAM (GB)
- 128
- Tip memorie RAM
- DDR5
DDR5-SDRAM - Culoare
- Dark brown
- USB 3.2
- 0
3 - Thunderbolt
- Nu
- HDMI
- 1
Da - Battery technology
- Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells
- 1
- USB 2.0 ports quantity
- 3
- Depth
- 225 mm
- Width
- 244 mm
- Height
- 35 mm
- HDMI version
- 2.1
- Audio Chip
- Realtek ALC897
- Memory channels
- Dual-channel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Bundled software
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Battery weight
- 3 g
- Wi-FI
- Nu
- Package height
- 54 mm
- Package width
- 265 mm
- Package depth
- 265 mm
- Package weight
- 1.2 kg
- Headphone outputs
- 1
- Lithium weight per battery
- 0.07 g
- Battery type
- CR2032
- BIOS memory size
- 256 Mbit
- ACPI version
- 5.0
- Desktop Management Interface (DMI) version
- 2.7
- System Management BIOS (SMBIOS) version
- 2.7
- BIOS type
- UEFI AMI
- Clear CMOS jumper
- Da
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Audio output channels
- 7.1 channels
- Cooling type
- Passive
- Component for
- PC
- PC health monitoring
- Fan, Temperature, Voltage, Water cooling
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Power source type
- ATX
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- DirectX version
- 12.0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 4
- Front panel audio connector
- Da
- ATX Power connector (24-pin)
- Da
- CPU fan connector
- Da
- EPS power connector (8-pin)
- Da
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Front panel connector
- Da
- Number of CPU fan connectors
- 2
- Number of chassis fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 1
- TPM connector
- Da
- Number of water pump connectors
- 2
- RGB LED pin header
- Da
- Number of RGB LED pin headers
- 3
- Products per shipping (inner) case
- 1 pc(s)
- Supported memory clock speed (max)
- 9066 MHz
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Memory slots type
- DIMM
- Unbuffered memory
- Da
- Ethernet interface type
- 2.5 Gigabit Ethernet
- LAN controller
- Realtek RTL8125
- Batteries included
- Da
- Screws included
- Da
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- DisplayPort version
- 2.1
- DisplayPorts quantity
- 1
- VGA (D-Sub) ports quantity
- 0
- Line-in
- Da
- DVI-D ports quantity
- 0
- RAID support
- Da
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Warranty period
- 3 year(s)
- MB-Socket
- LGA1851
- MB-Format
- micro-ATX
- PCI-Ex1
- 0
- PCI-Ex16
- 2
- RAM-Slots
- 2
- USB3
- 4-8
- Onboard-CPU
- Nu
- PCI
- 0
- Serial-or-Paralel
- No/No
- Gaming
- Nu
- Socket procesor
- LGA 1851 (Socket V1)
- HDCP
- Da
- Microphone in
- Da
- Supported memory clock speeds
- 9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz
- Numar sloturi memorie
- 2
- Model Chipset
- B860
- Tip slot interfata grafica
- PCIe 5.0 x16
- Soclu Procesor
- Socket 1851
- Chipset audio integrat
- Realtek
- Serial port headers
- 1
- PS/2 ports quantity
- 1
- S/PDIF out connector
- Da
- Numar sloturi M.2
- 2
- Format placa de baza
- micro ATX
- Familie chipset
- Intel
- Niveluri RAID
- 0, 1, 5, 10
- Interfete stocare
- M.2, PCI Express 4.0, PCI Express 5.0, SATA III
